THE BODY IS FORGED FROM CARBON STEEL IN ONE PIECE AND ZINC-PLATED FOR RUST PREVENTION. FEATURES AN AMERICAN NPSM STRAIGHT PIPE FEMALE INTERNAL THREAD WITH A 60° EXTERNAL CONE METAL SEAL AT THE END, WHERE THE CONE SURFACE BUTTS AND LOCKS TO PREVENT LEAKAGE. EQUIPPED WITH A STANDARD CLAMPING SLEEVE THAT ENSURES SECURE CRIMPING TO HIGH-PRESSURE HOSES, PROVIDING PULL-OUT RESISTANCE AND WITHSTANDING OIL LINE PULSES, WHILE ALLOWING FOR EASY ASSEMBLY AND DISASSEMBLY.
| PART NO. | THREAD E | HOSE BORE | DIMENSIONS | |||||
|---|---|---|---|---|---|---|---|---|
| BRAIDED | SPIRAL | DN | DASH | A | C | H | S2 | |
| 21691-04-04RW | -- | 1/4" X18 | 6 | 04 | 31.5 | 4.6 | 36.5 | 19 |
| 21691-04-06RW | -- | 1/4" X18 | 10 | 06 | 36.3 | 1.6 | 41.8 | 19 |
| 21691-06-04RW | -- | 3/8" X18 | 6 | 04 | 31.5 | 6 | 37.7 | 22 |
| 21691-06-05RW | -- | 3/8" X18 | 8 | 05 | 34.5 | 6 | 40.7 | 22 |
| 21691-06-06RW | -- | 3/8" X18 | 10 | 06 | 36.3 | 6 | 43 | 22 |
| 21691-08-08RW | 21692-08-08RW | 1/2" X14 | 12 | 08 | 42.5 | 7.5 | 51 | 27 |
| 21691-12-10RW | 21692-12-10RW | 3/4" X14 | 16 | 10 | 57 | 8.9 | 56.5 | 32 |
| 21691-12-12RW | 21692-12-12RW | 3/4" X14 | 20 | 12 | 63.2 | 8.9 | 63 | 32 |
| 21691-16-12TRW | 21692-16-12TRW | 1" X11.5 | 20 | 12 | 63.2 | 10.5 | 61.3 | 41 |
| 21691-16-16RW | 21692-16-16RW | 1" X11.5 | 25 | 16 | 78.9 | 10.5 | 73.3 | 41 |
| 21691-20-20WRW | 21692-20-20WRW | 1.1/4" X11.5 | 32 | 20 | 92.7 | 11.2 | 90 | 50 |
| 21691-24-20TRW | 21692-24-20TRW | 1.1/2" X11.5 | 32 | 20 | 92.7 | 11.2 | 83.5 | 55 |
| 21691-24-24WRW | 21692-24-24WRW | 1.1/2" X11.5 | 40 | 24 | 111.4 | 11.2 | 104.5 | 55 |
| 21691-32-32WRW | 21692-32-32WRW | 2" X11.5 | 50 | 32 | 138.6 | 11.2 | 123.3 | 70 |

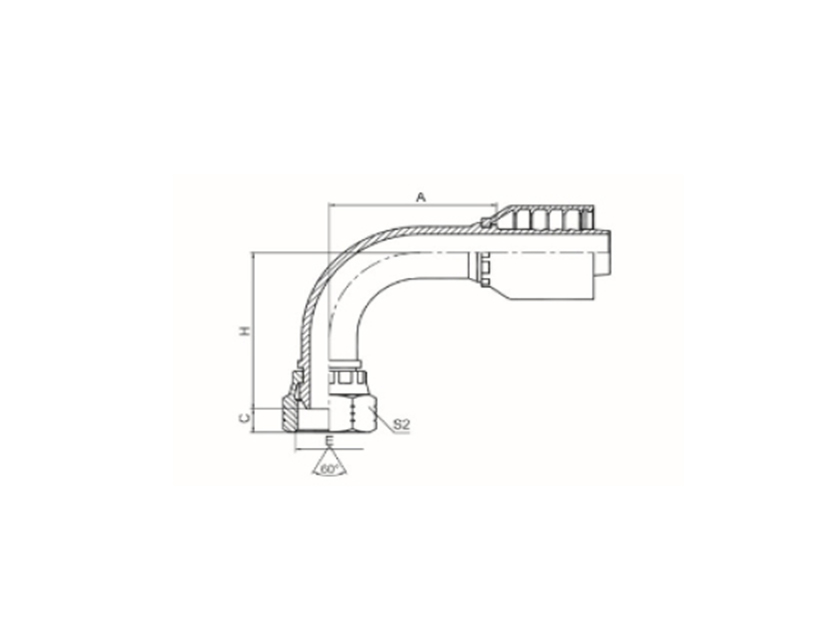

Selection note: AMERICAN NPSM FEMALE INTERNAL THREAD 60° EXTERNAL CONE SAE J514. Verify thread size, sealing form and pressure rating against the equipment port before ordering. Common sizes are available from stock, and custom production to drawing or sample is available with material and plating options.
