CARBON STEEL FORGED BODY WITH ZINC-PLATED CORROSION PREVENTION. FEATURES AN AMERICAN UNF MALE EXTERNAL THREAD WITH A 74° EXTERNAL CONE METAL SEAL AT THE END, RELYING ON PRECISE CONE SURFACE CONFORMABILITY FOR SEALING WITHOUT O-RINGS. EQUIPPED WITH A STANDARD CLAMPING SLEEVE THAT ENSURES TIGHT CRIMPING TO THE HYDRAULIC HOSE, PROVIDING PULL-OUT RESISTANCE AND WITHSTANDING HIGH-FREQUENCY HYDRAULIC PULSES, EFFECTIVELY PREVENTING FITTING DISCONNECTION AND OIL SEEPAGE. MANUFACTURED IN STRICT ACCORDANCE WITH SAE J514 AND ISO 8434-2 STANDARDS.

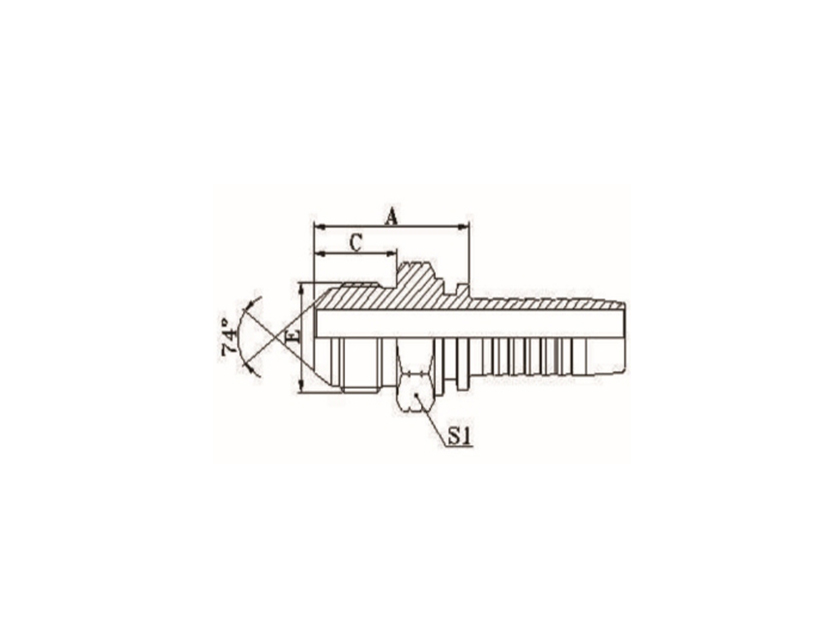

| PART NO. | THREAD E | HOSE BORE | DIMENSIONS | ||||
|---|---|---|---|---|---|---|---|
| BRAIDED | SPIRAL | DN | DASH | A | C | S1 | |
| 16711-04-04RW | -- | 7/16" X20 | 6 | 04 | 26 | 14 | 12 |
| 16711-05-04RW | -- | 1/2" X20 | 6 | 04 | 26 | 14 | 14 |
| 16711-05-05RW | -- | 1/2" X20 | 8 | 05 | 26 | 14 | 14 |
| 16711-05-06RW | -- | 1/2" X20 | 10 | 06 | 25.5 | 14 | 17 |
| 16711-06-04RW | -- | 9/16" X18 | 6 | 04 | 26.1 | 14.1 | 17 |
| 16711-06-05RW | -- | 9/16" X18 | 8 | 05 | 26.1 | 14.1 | 17 |
| 16711-06-06RW | -- | 9/16" X18 | 10 | 06 | 25.6 | 14.1 | 17 |
| 16711-08-06RW | -- | 3/4" X16 | 10 | 06 | 30.2 | 16.7 | 22 |
| 16711-08-08RW | 16712-08-08RW | 3/4" X16 | 12 | 08 | 31.2 | 16.7 | 22 |
| 16711-10-06RW | -- | 7/8" X14 | 10 | 06 | 32.8 | 19.3 | 24 |
| 16711-10-08RW | 16712-10-08RW | 7/8" X14 | 12 | 08 | 33.8 | 19.3 | 24 |
| 16711-10-10RW | 16712-10-10RW | 7/8" X14 | 16 | 10 | 34.3 | 19.3 | 24 |
| 16711-12-08RW | 16712-12-08RW | 1.1/16" X12 | 12 | 08 | 38.4 | 21.9 | 27 |
| 16711-12-10RW | 16712-12-10RW | 1.1/16" X12 | 16 | 10 | 38.9 | 21.9 | 27 |
| 16711-12-12RW | 16712-12-12RW | 1.1/16" X12 | 20 | 12 | 37.9 | 21.9 | 27 |
| 16711-12-16RW | 16712-12-16RW | 1.1/16" X12 | 25 | 16 | 41.1 | 21.9 | 30 |
| 16711-14-10RW | 16712-14-10RW | 1.3/16" X12 | 16 | 10 | 40.6 | 22.6 | 32 |
| 16711-14-12RW | 16712-14-12RW | 1.3/16" X12 | 20 | 12 | 39.6 | 22.6 | 32 |
| 16711-16-12RW | 16712-16-12RW | 1.5/16" X12 | 20 | 12 | 40.1 | 23.1 | 36 |
| 16711-16-16RW | 16712-16-16RW | 1.5/16" X12 | 25 | 16 | 43.3 | 23.1 | 36 |
| 16711-20-16RW | 16712-20-16RW | 1.5/8" X12 | 25 | 16 | 46.5 | 24.3 | 46 |
| 16711-20-20RW | 16712-20-20RW | 1.5/8" X12 | 32 | 20 | 46.5 | 24.3 | 46 |
| 16711-24-20RW | 16712-24-20RW | 1.7/8" X12 | 32 | 20 | 51.7 | 27.5 | 50 |
| 16711-24-24RW | 16712-24-24RW | 1.7/8" X12 | 40 | 24 | 52.5 | 27.5 | 50 |
| 16711-32-32RW | 16712-32-32RW | 2.1/2" X12 | 50 | 32 | 64.4 | 33.9 | 65 |
Selection note: AMERICAN JIC MALE EXTERNAL THREAD 74° EXTERNAL CONE. Verify thread size, sealing form and pressure rating against the equipment port before ordering. Common sizes are available from stock, and custom production to drawing or sample is available with material and plating options.
