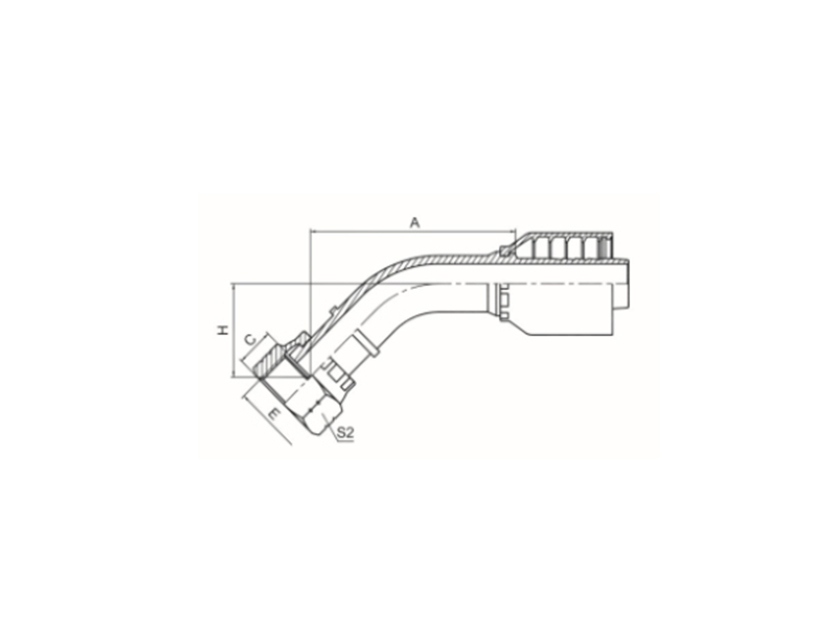

MANUFACTURED IN STRICT ACCORDANCE WITH ISO 12151-1 AND SAE J516 STANDARDS. THE BODY IS FORGED FROM CARBON STEEL AND ZINC-PLATED FOR RUST PREVENTION. FEATURES A 45° ELBOW AND AMERICAN UNF FEMALE INTERNAL THREAD, WITH AN ORFS FLAT SEAT STRUCTURE THAT RELIES ON END-FACE O-RING COMPRESSION FOR SEALING, PROVIDING EXCELLENT VIBRATION RESISTANCE AND LEAK-FREE PERFORMANCE. EQUIPPED WITH A THICKENED CLAMPING SLEEVE COMPATIBLE WITH HIGH-PRESSURE HYDRAULIC HOSES, ENSURING SECURE CRIMPING ENGAGEMENT, HIGH-FREQUENCY PRESSURE PULSE RESISTANCE, AND PULL-OUT RESISTANCE, EFFECTIVELY PREVENTING OIL SEEPAGE DURING LONG-TERM USE.
| PART NO. | THREAD E | HOSE BORE | DIMENSIONS | ||||
|---|---|---|---|---|---|---|---|
| BRAIDED | SPIRAL | DN | DASH | A | C | S1 | |
| 16711-04-04RW | -- | 7/16" X20 | 6 | 04 | 26 | 14 | 12 |
| 16711-05-04RW | -- | 1/2" X20 | 6 | 04 | 26 | 14 | 14 |
| 16711-05-05RW | -- | 1/2" X20 | 8 | 05 | 26 | 14 | 14 |
| 16711-05-06RW | -- | 1/2" X20 | 10 | 06 | 25.5 | 14 | 17 |
| 16711-06-04RW | -- | 9/16" X18 | 6 | 04 | 26.1 | 14.1 | 17 |
| 16711-06-05RW | -- | 9/16" X18 | 8 | 05 | 26.1 | 14.1 | 17 |
| 16711-06-06RW | -- | 9/16" X18 | 10 | 06 | 25.6 | 14.1 | 17 |
| 16711-08-06RW | -- | 3/4" X16 | 10 | 06 | 30.2 | 16.7 | 22 |
| 16711-08-08RW | 16712-08-08RW | 3/4" X16 | 12 | 08 | 31.2 | 16.7 | 22 |
| 16711-10-06RW | -- | 7/8" X14 | 10 | 06 | 32.8 | 19.3 | 24 |
| 16711-10-08RW | 16712-10-08RW | 7/8" X14 | 12 | 08 | 33.8 | 19.3 | 24 |
| 16711-10-10RW | 16712-10-10RW | 7/8" X14 | 16 | 10 | 34.3 | 19.3 | 24 |
| 16711-12-08RW | 16712-12-08RW | 1.1/16" X12 | 12 | 08 | 38.4 | 21.9 | 27 |
| 16711-12-10RW | 16712-12-10RW | 1.1/16" X12 | 16 | 10 | 38.9 | 21.9 | 27 |
| 16711-12-12RW | 16712-12-12RW | 1.1/16" X12 | 20 | 12 | 37.9 | 21.9 | 27 |
| 16711-12-16RW | 16712-12-16RW | 1.1/16" X12 | 25 | 16 | 41.1 | 21.9 | 30 |
| 16711-14-10RW | 16712-14-10RW | 1.3/16" X12 | 16 | 10 | 40.6 | 22.6 | 32 |
| 16711-14-12RW | 16712-14-12RW | 1.3/16" X12 | 20 | 12 | 39.6 | 22.6 | 32 |
| 16711-16-12RW | 16712-16-12RW | 1.5/16" X12 | 20 | 12 | 40.1 | 23.1 | 36 |
| 16711-16-16RW | 16712-16-16RW | 1.5/16" X12 | 25 | 16 | 43.3 | 23.1 | 36 |
| 16711-20-16RW | 16712-20-16RW | 1.5/8" X12 | 25 | 16 | 46.5 | 24.3 | 46 |
| 16711-20-20RW | 16712-20-20RW | 1.5/8" X12 | 32 | 20 | 46.5 | 24.3 | 46 |
| 16711-24-20RW | 16712-24-20RW | 1.7/8" X12 | 32 | 20 | 51.7 | 27.5 | 50 |
| 16711-24-24RW | 16712-24-24RW | 1.7/8" X12 | 40 | 24 | 52.5 | 27.5 | 50 |
| 16711-32-32RW | 16712-32-32RW | 2.1/2" X12 | 50 | 32 | 64.4 | 33.9 | 65 |
Selection note: 45° AMERICAN ORFS FEMALE INTERNAL THREAD FLAT SEAT ISO 12151-1 SAE J516. Verify thread size, sealing form and pressure rating against the equipment port before ordering. Common sizes are available from stock, and custom production to drawing or sample is available with material and plating options.
