MANUFACTURED IN STRICT ACCORDANCE WITH ISO 8434-2 AND SAE J514 AMERICAN STANDARDS. THE BODY IS FORGED FROM CARBON STEEL IN ONE PIECE AND ZINC-PLATED FOR RUST PREVENTION. FEATURES AN AMERICAN UNF MALE EXTERNAL THREAD WITH A 74° EXTERNAL CONE METAL SEAL AT THE END, RELYING ON PRECISE CONE SURFACE CONFORMABILITY FOR SEALING WITHOUT O-RINGS. EQUIPPED WITH A STANDARD CLAMPING SLEEVE THAT ENSURES SECURE CRIMPING TO HIGH-PRESSURE HYDRAULIC HOSES, PROVIDING PULL-OUT RESISTANCE AND WITHSTANDING HIGH-FREQUENCY PULSES IN THE OIL LINE, EFFECTIVELY PREVENTING HOSE DISCONNECTION AND LEAKAGE.

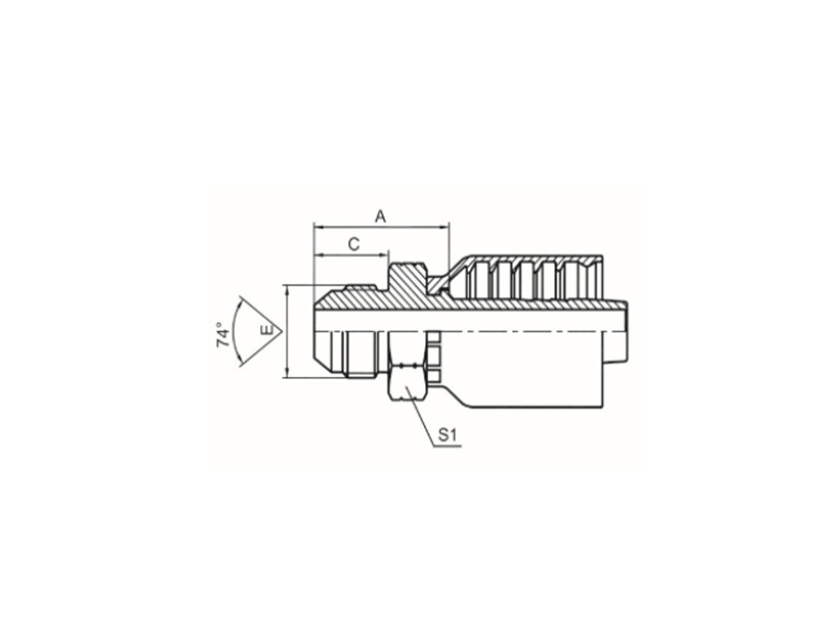

| PART NO. | THREAD E | HOSE BORE | DIMENSIONS | ||||
|---|---|---|---|---|---|---|---|
| BRAIDED | SPIRAL | DN | DASH | A | C | S1 | |
| 16711-04-04RW | -- | 7/16" X20 | 6 | 04 | 26 | 14 | 12 |
| 16711-05-04RW | -- | 1/2" X20 | 6 | 04 | 26 | 14 | 14 |
| 16711-05-05RW | -- | 1/2" X20 | 8 | 05 | 26 | 14 | 14 |
| 16711-05-06RW | -- | 1/2" X20 | 10 | 06 | 25.5 | 14 | 17 |
| 16711-06-04RW | -- | 9/16" X18 | 6 | 04 | 26.1 | 14.1 | 17 |
| 16711-06-05RW | -- | 9/16" X18 | 8 | 05 | 26.1 | 14.1 | 17 |
| 16711-06-06RW | -- | 9/16" X18 | 10 | 06 | 25.6 | 14.1 | 17 |
| 16711-08-06RW | -- | 3/4" X16 | 10 | 06 | 30.2 | 16.7 | 22 |
| 16711-08-08RW | 16712-08-08RW | 3/4" X16 | 12 | 08 | 31.2 | 16.7 | 22 |
| 16711-10-06RW | -- | 7/8" X14 | 10 | 06 | 32.8 | 19.3 | 24 |
| 16711-10-08RW | 16712-10-08RW | 7/8" X14 | 12 | 08 | 33.8 | 19.3 | 24 |
| 16711-10-10RW | 16712-10-10RW | 7/8" X14 | 16 | 10 | 34.3 | 19.3 | 24 |
| 16711-12-08RW | 16712-12-08RW | 1.1/16" X12 | 12 | 08 | 38.4 | 21.9 | 27 |
| 16711-12-10RW | 16712-12-10RW | 1.1/16" X12 | 16 | 10 | 38.9 | 21.9 | 27 |
| 16711-12-12RW | 16712-12-12RW | 1.1/16" X12 | 20 | 12 | 37.9 | 21.9 | 27 |
| 16711-12-16RW | 16712-12-16RW | 1.1/16" X12 | 25 | 16 | 41.1 | 21.9 | 30 |
| 16711-14-10RW | 16712-14-10RW | 1.3/16" X12 | 16 | 10 | 40.6 | 22.6 | 32 |
| 16711-14-12RW | 16712-14-12RW | 1.3/16" X12 | 20 | 12 | 39.6 | 22.6 | 32 |
| 16711-16-12RW | 16712-16-12RW | 1.5/16" X12 | 20 | 12 | 40.1 | 23.1 | 36 |
| 16711-16-16RW | 16712-16-16RW | 1.5/16" X12 | 25 | 16 | 43.3 | 23.1 | 36 |
| 16711-20-16RW | 16712-20-16RW | 1.5/8" X12 | 25 | 16 | 46.5 | 24.3 | 46 |
| 16711-20-20RW | 16712-20-20RW | 1.5/8" X12 | 32 | 20 | 46.5 | 24.3 | 46 |
| 16711-24-20RW | 16712-24-20RW | 1.7/8" X12 | 32 | 20 | 51.7 | 27.5 | 50 |
| 16711-24-24RW | 16712-24-24RW | 1.7/8" X12 | 40 | 24 | 52.5 | 27.5 | 50 |
| 16711-32-32RW | 16712-32-32RW | 2.1/2" X12 | 50 | 32 | 64.4 | 33.9 | 65 |
Selection note: AMERICAN JIC MALE EXTERNAL THREAD 74° EXTERNAL CONE ISO 8434-2 SAE J514. Verify thread size, sealing form and pressure rating against the equipment port before ordering. Common sizes are available from stock, and custom production to drawing or sample is available with material and plating options.
