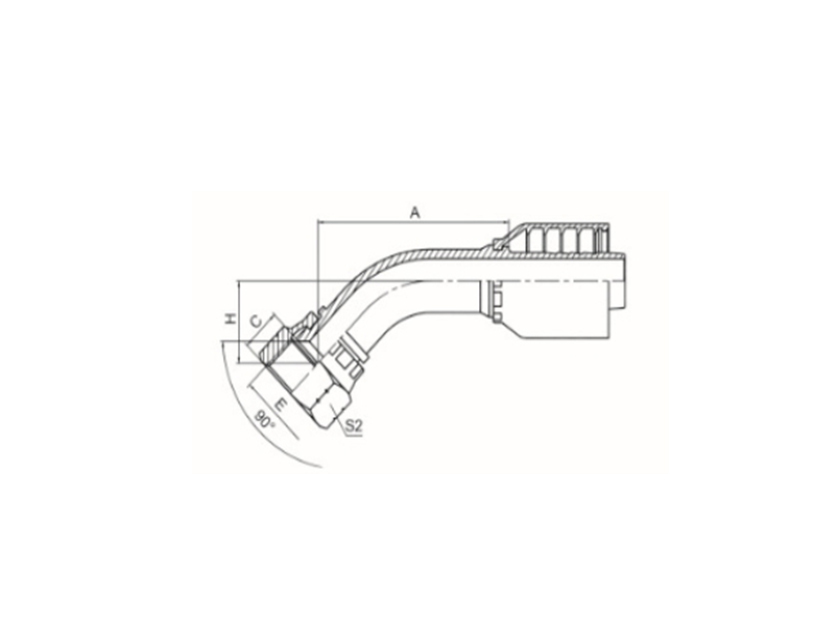

MANUFACTURED IN STRICT ACCORDANCE WITH THE AMERICAN SAE J513 STANDARD. THE BODY IS FORGED FROM CARBON STEEL AND ZINC-PLATED FOR RUST PREVENTION. FEATURES A 45° ELBOW AND AMERICAN UNF FEMALE INTERNAL THREAD, WITH A 90° INTERNAL CONE METAL-TO-METAL HARD SEAL ON THE END FACE TO ENSURE STABLE CONE SURFACE SEALING PERFORMANCE. EQUIPPED WITH A STANDARD CLAMPING SLEEVE THAT INTEGRATES SEAMLESSLY WITH THE HYDRAULIC HOSE CRIMPING, PROVIDING PULL-OUT RESISTANCE, WITHSTANDING CONTINUOUS HYDRAULIC PULSES, AND PREVENTING DELAMINATION AND OIL LEAKAGE.
| PART NO. |
THREAD E |
HOSE BORE | DIMENSIONS | |||||
|---|---|---|---|---|---|---|---|---|
| BRAIDED | SPIRAL | DN | DASH | A | C | H | S2 | |
| 27841-04-04RW | -- | 7/16" X20 | 6 | 04 | 41.7 | 9 | 18.1 | 15 |
| 27841-05-05RW | -- | 1/2" X20 | 8 | 05 | 44.1 | 9.5 | 19.3 | 17 |
| 27841-06-04RW | -- | 5/8" X18 | 6 | 04 | 43.1 | 11.3 | 19.5 | 22 |
| 27841-06-05RW | -- | 5/8" X18 | 8 | 05 | 45.2 | 11.3 | 20.4 | 22 |
| 27841-06-06RW | 27842-08-08RW | 5/8" X18 | 10 | 06 | 46.3 | 11.3 | 21.1 | 22 |
| 27841-08-08RW | 27842-10-08RW | 3/4" X16 | 12 | 08 | 60 | 11 | 23.6 | 24 |
| 27841-10-08RW | 27842-10-10RW | 7/8" X14 | 12 | 08 | 60.4 | 13 | 24 | 27 |
| 27841-10-10RW | 27842-12-12RW | 7/8" X14 | 16 | 10 | 70.6 | 13 | 25.3 | 27 |
| 27841-12-12RW | 27842-16-16RW | 1.1/16" X14 | 20 | 12 | 75 | 14.3 | 29.2 | 32 |
Selection note: 45° AMERICAN SAE FEMALE INTERNAL THREAD 90° INTERNAL CONE SAE J513. Verify thread size, sealing form and pressure rating against the equipment port before ordering. Common sizes are available from stock, and custom production to drawing or sample is available with material and plating options.
