STRICTLY MANUFACTURED IN ACCORDANCE WITH THE SAE J514 STANDARD. THE BODY IS FORGED FROM CARBON STEEL AND ZINC-PLATED FOR RUST PREVENTION. FEATURES A 90° ELBOW SHORT BODY COMPACT STRUCTURE AND AMERICAN UNF FEMALE INTERNAL THREAD. THE 74° INTERNAL CONE METAL-TO-METAL SEALING REQUIRES NO O-RINGS, ENSURING HIGH PRESSURE RESISTANCE AND LEAK-FREE PERFORMANCE. THE SHORT BODY DESIGN SAVES INSTALLATION SPACE. EQUIPPED WITH A STANDARD SLEEVE COMPATIBLE WITH STEEL WIRE BRAIDED HYDRAULIC HOSES, ENSURING SECURE CRIMPING, PULL-OUT RESISTANCE, AND HIGH-FREQUENCY PRESSURE PULSE RESISTANCE.

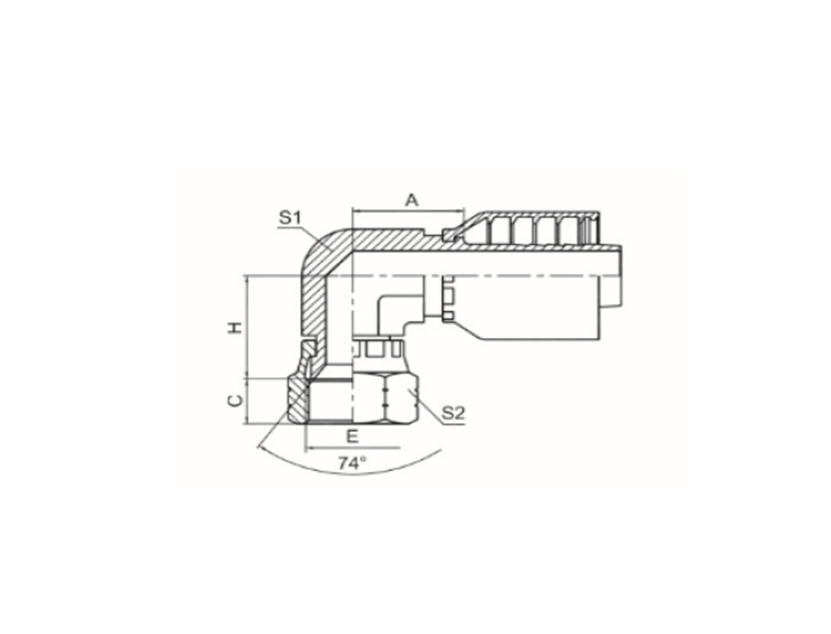

| PART NO. | THREAD E | HOSE BORE | DIMENSIONS | ||||||
|---|---|---|---|---|---|---|---|---|---|
| BRAIDED | SPIRAL | DN | DASH | A | C | H | S1 | S2 | |
| 26791K-04-04RW | -- | 7/16" X20 | 6 | 04 | 19 | 9 | 18 | 11 | 15 |
| 26791K-06-04RW | -- | 9/16" X18 | 6 | 04 | 20 | 10.5 | 21 | 14 | 19 |
| 26791K-06-06RW | -- | 9/16" X18 | 10 | 06 | 21 | 10.5 | 21 | 16 | 19 |
| 26791K-08-06RW | -- | 3/4" X16 | 10 | 06 | 23.5 | 11 | 25 | 19 | 24 |
| 26791K-08-08RW | 26792K-08-08RW | 3/4" X16 | 12 | 08 | 24 | 11 | 25 | 22 | 24 |
| 26791K-10-08RW | 26792K-10-08RW | 7/8" X14 | 12 | 08 | 25 | 13 | 27.5 | 22 | 27 |
| 26791K-10-10RW | 26792K-10-10RW | 7/8" X14 | 16 | 10 | 26.5 | 13 | 27.5 | 22 | 27 |
| 26791K-12-12RW | 26792K-12-12RW | 1.1/16" X12 | 20 | 12 | 27.5 | 15 | 30 | 27 | 32 |
| 26791K-16-16RW | 26792K-16-16RW | 1.5/16" X12 | 25 | 16 | 45.2 | 16 | 34.3 | 33 | 41 |
Selection note: 90° AMERICAN STANDARD SHORT BODY JIC FEMALE INTERNAL THREAD 74° INTERNAL CONE SAE J514. Verify thread size, sealing form and pressure rating against the equipment port before ordering. Common sizes are available from stock, and custom production to drawing or sample is available with material and plating options.
