MANUFACTURED FROM FORGED CARBON STEEL WITH ZINC-PLATED RUST PREVENTION. THE STANDARD AMERICAN NPT PIPE TAPERED MALE EXTERNAL THREAD FEATURES A 1:16 TAPER FOR SELF-SEALING, RELYING ON TIGHT ENGAGEMENT OF THE THREAD FORM TO ACHIEVE GAS AND OIL TIGHTNESS WITHOUT THE NEED FOR ADDITIONAL O-RINGS. EQUIPPED WITH A STANDARD HOSE SLEEVE THAT ENSURES SECURE CRIMPING AND CLAMPING, PROVIDING PULL-OUT RESISTANCE AND WITHSTANDING PRESSURE PULSES, WHILE ALLOWING FOR EASY ASSEMBLY AND DISASSEMBLY.

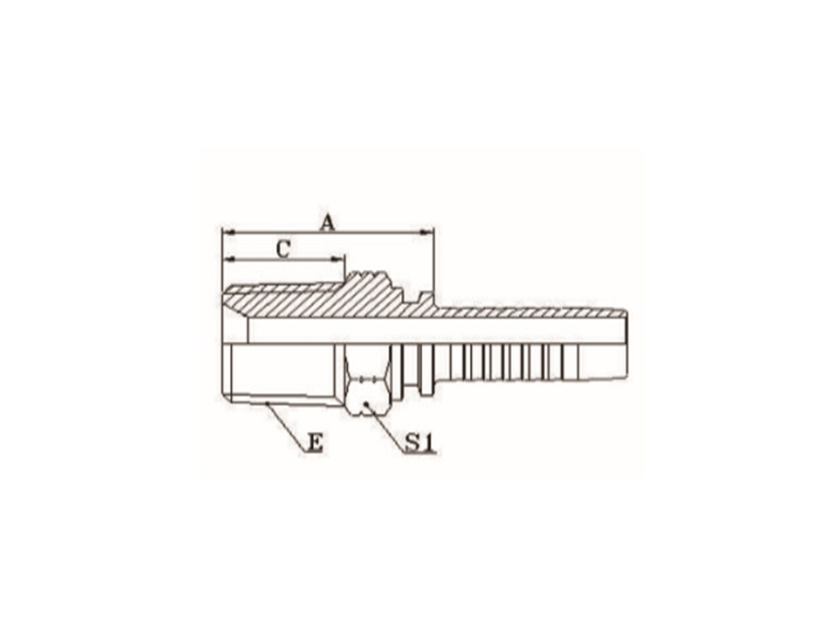

PART NO. | THREAD E | HOSE BORE | DIMENSIONS | |||
|---|---|---|---|---|---|---|
| DN | DASH | A | C | S1 | ||
| 15611-02-03 | Z1/8" X27 | 5 | 03 | 21.5 | 10.5 | 12 |
| 15611-02-04 | Z1/8" X27 | 6 | 04 | 22.5 | 10.5 | 12 |
| 15611-04-03 | Z1/4" X18 | 5 | 03 | 27 | 15 | 17 |
| 15611-04-04 | Z1/4" X18 | 6 | 04 | 27.5 | 15 | 17 |
| 15611-04-05 | Z1/4" X18 | 8 | 05 | 27.5 | 15 | 17 |
| 15611-04-06 | Z1/4" X18 | 10 | 06 | 27.5 | 15 | 17 |
| 15611-06-04 | Z3/4" X18 | 6 | 04 | 29 | 16 | 19 |
| 15611-06-05 | Z3/4" X18 | 8 | 05 | 29 | 16 | 19 |
| 15611-06-06 | Z3/4" X18 | 10 | 06 | 29 | 16 | 19 |
| 15611-06-08 | Z3/4" X18 | 12 | 08 | 29.5 | 16 | 19 |
| 15611-08-06 | Z1/2" X14 | 10 | 06 | 33.5 | 19.5 | 22 |
| 15611-08-08 | Z1/2" X14 | 12 | 08 | 34 | 19.5 | 22 |
| 15611-08-10 | Z1/2" X14 | 16 | 10 | 35.5 | 19.5 | 22 |
| 15611-12-08 | Z3/4" X14 | 12 | 08 | 37 | 19.5 | 27 |
| 15611-12-10 | Z3/4" X14 | 16 | 10 | 37 | 19.5 | 27 |
| 15611-12-12 | Z3/4" X14 | 20 | 12 | 38.5 | 19.5 | 27 |
| 15611-12-16 | Z3/4" X14 | 25 | 16 | 39.5 | 19.5 | 32 |
| 15611-16-10 | Z1" X11.5 | 16 | 10 | 45 | 25.5 | 36 |
| 15611-16-12 | Z1" X11.5 | 20 | 12 | 45 | 25.5 | 36 |
| 15611-16-16 | Z1" X11.5 | 25 | 16 | 47.5 | 25.5 | 36 |
| 15611-20-16 | Z1.1/4" X11.5 | 25 | 16 | 49 | 26.5 | 46 |
| 15611-20-20 | Z1.1/4" X11.5 | 32 | 20 | 50.5 | 26.5 | 46 |
| 15611-24-24 | Z1.1/2" X11.5 | 40 | 24 | 53.5 | 27.5 | 50 |
| 15611-32-32 | Z2" X11.5 | 50 | 32 | 56.5 | 27.5 | 65 |
Selection note: AMERICAN STANDARD PIPE TAPERED MALE EXTERNAL THREAD. Verify thread size, sealing form and pressure rating against the equipment port before ordering. Common sizes are available from stock, and custom production to drawing or sample is available with material and plating options.
