MANUFACTURED IN STRICT ACCORDANCE WITH ISO 12151-2 AND DIN 3865 STANDARDS. THE BODY IS FORGED FROM CARBON STEEL AND ZINC-PLATED FOR RUST PREVENTION. FEATURES A 45° ELBOW AND METRIC FEMALE INTERNAL THREAD, WITH A 24° CONE SEAT PAIRED WITH AN O-RING FOR EXCELLENT COMPOSITE SEALING PERFORMANCE. EQUIPPED WITH A LIGHT SERIES THIN CLAMPING SLEEVE COMPATIBLE WITH LIGHT-DUTY STEEL WIRE BRAIDED HYDRAULIC HOSES, ENSURING SECURE CRIMPING, LIGHTWEIGHT BENDING, PULL-OUT RESISTANCE, AND HIGH-PRESSURE PULSE RESISTANCE.
7篇来源

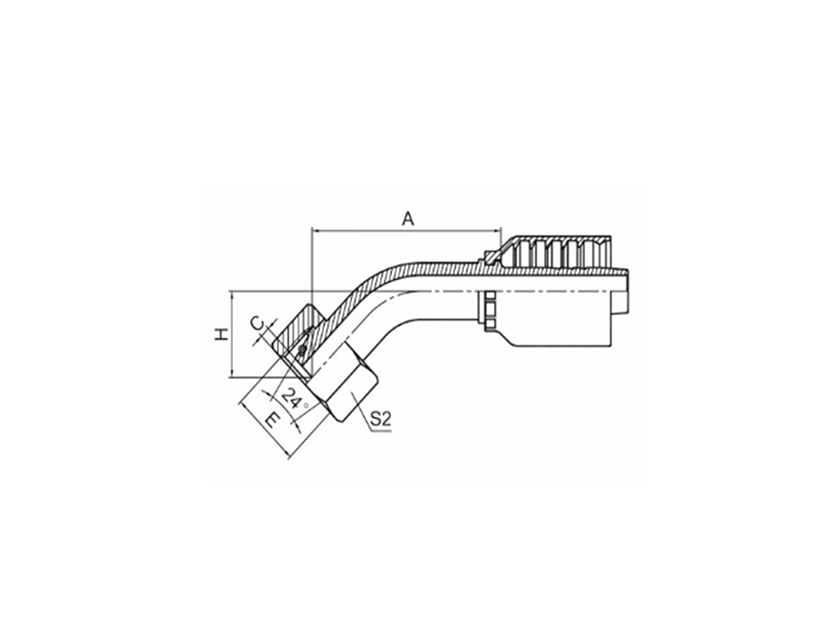

| PART NO. | THREAD E | HOSE BORE | TUBE O.D. | O RING | DIMENSIONS | |||||
|---|---|---|---|---|---|---|---|---|---|---|
| BRAIDED | SPIRAL | DN | DASH | A | C | H | S1 | |||
| 20441-12-04WRW | -- | M12X1.5 | 6 | 04 | 6 | O04.5X1.5 | 46.7 | 1.4 | 23.1 | 17 |
| 20441-14-04TRW | -- | M14X1.5 | 6 | 04 | 8 | O06.5X1.5 | 43.9 | 1.4 | 20.3 | 17 |
| 20441-14-06WRW | -- | M14X1.5 | 10 | 06 | 8 | O06.5X1.5 | 50 | 1.4 | 24.8 | 17 |
| 20441-16-04TRW | -- | M16X1.5 | 6 | 04 | 10 | O08.0X1.5 | 44.3 | 0.8 | 20.7 | 19 |
| 20441-16-05TRW | -- | M16X1.5 | 8 | 05 | 10 | O08.0X1.5 | 46.4 | 0.8 | 21.6 | 19 |
| 20441-16-06WRW | -- | M16X1.5 | 10 | 06 | 10 | O08.0X1.5 | 50.5 | 2.1 | 25.3 | 19 |
| 20441-18-05TRW | -- | M18X1.5 | 8 | 05 | 12 | O10.0X1.5 | 47.7 | 1.5 | 22.9 | 22 |
| 20441-18-06TRW | -- | M18X1.5 | 10 | 06 | 12 | O10.0X1.5 | 48.8 | 1.5 | 23.6 | 22 |
| 20441-18-08WRW | 20442-18-08WRW | M18X1.5 | 12 | 08 | 12 | O10.0X1.5 | 64.4 | 1.8 | 28 | 22 |
| 20441-22-05TRW | -- | M22X1.5 | 8 | 05 | 15 | O12.0X2.0 | 48 | 3 | 23.2 | 27 |
| 20441-22-06TRW | -- | M22X1.5 | 10 | 06 | 15 | O12.0X2.0 | 49.1 | 3 | 23.9 | 27 |
| 20441-22-08TRW | 20442-22-08TRW | M22X1.5 | 12 | 08 | 15 | O12.0X2.0 | 61.8 | 3 | 25.4 | 27 |
| 20441-22-10WRW | 20442-22-10WRW | M22X1.5 | 16 | 10 | 15 | O12.0X2.0 | 74.9 | 3 | 29.6 | 27 |
| 20441-26-08TRW | 20442-26-08TRW | M26X1.5 | 12 | 08 | 18 | O15.0X2.0 | 62.5 | 2.1 | 26.1 | 32 |
| 20441-26-10TRW | 20442-26-10TRW | M26X1.5 | 16 | 10 | 18 | O15.0X2.0 | 72.7 | 2.1 | 27.4 | 32 |
| 20441-26-12WRW | 20442-26-12WRW | M26X1.5 | 20 | 12 | 18 | O15.0X2.0 | 78.8 | 2.1 | 33 | 32 |
| 20441-30-10TRW | 20442-30-10TRW | M30X2 | 16 | 10 | 22 | O20.0X2.0 | 74.6 | 3.8 | 29.3 | 36 |
| 20441-30-12TRW | 20442-30-12TRW | M30X2 | 20 | 12 | 22 | O20.0X2.0 | 77.9 | 3.8 | 32.1 | 36 |
| 20441-30-16WRW | 20442-30-16WRW | M30X2 | 25 | 16 | 22 | O20.0X2.0 | 93 | 3.8 | 36.6 | 36 |
| 20441-36-12TRW | 20442-36-12TRW | M36X2 | 20 | 12 | 28 | O26.0X2.0 | 77.4 | 4.5 | 31.6 | 41 |
| 20441-36-16TRW | 20442-36-16TRW | M36X2 | 25 | 16 | 28 | O26.0X2.0 | 89.6 | 4.5 | 33.2 | 41 |
| 20441-36-20WRW | 20442-36-20WRW | M36X2 | 32 | 20 | 28 | O26.0X2.0 | 102.8 | 4.5 | 40.9 | 41 |
Selection note: 45° METRIC FEMALE INTERNAL THREAD 24° CONE WITH O-RING LIGHT SERIES ISO 12151-2 DIN 3865. Verify thread size, sealing form and pressure rating against the equipment port before ordering. Common sizes are available from stock, and custom production to drawing or sample is available with material and plating options.
