MANUFACTURED IN STRICT ACCORDANCE WITH THE NATIONAL STANDARD GB/T5628. THE BODY IS FORGED FROM CARBON STEEL AND ZINC-PLATED FOR RUST PREVENTION. THE METRIC MALE EXTERNAL THREAD FEATURES A 74° EXTERNAL CONE SEALING SURFACE AT THE END, RELYING ON METAL-TO-METAL CONE SURFACE CONTACT FOR SEALING WITHOUT THE NEED FOR O-RINGS. EQUIPPED WITH A STANDARD HOSE SLEEVE THAT ENSURES SECURE CRIMPING AND CLAMPING, PROVIDING PULL-OUT RESISTANCE AND WITHSTANDING HYDRAULIC PRESSURE PULSES. THE INTEGRALLY MOLDED STRUCTURE PREVENTS CRACKING AND LEAKAGE.

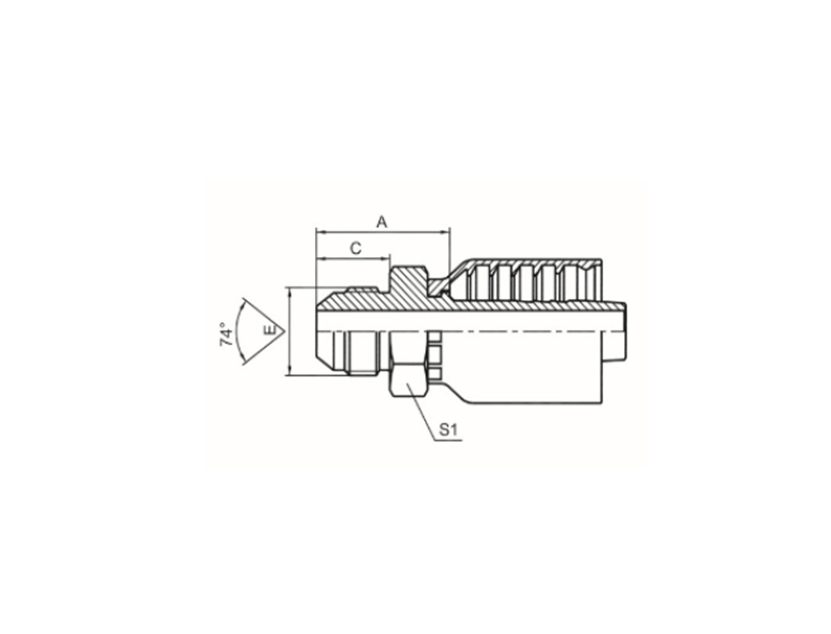

| PART NO. | THREAD E | HOSE BORE | DIMENSIONS | ||||
|---|---|---|---|---|---|---|---|
| BRAIDED | SPIRAL | DN | DASH | A | C | S1 | |
| 10711-14-04RW | -- | M14X1.5 | 6 | 04 | 30 | 18 | 17 |
| 10711-14-06RW | -- | M14X1.5 | 10 | 06 | 29.5 | 18 | 17 |
| 10711-16-05RW | -- | M16X1.5 | 8 | 05 | 31 | 19 | 17 |
| 10711-16-05RW | -- | M16X1.5 | 8 | 05 | 31 | 19 | 17 |
| 10711-18-06RW | -- | M18X1.5 | 10 | 06 | 30.5 | 19 | 19 |
| 10711-22-08RW | -- | M22X1.5 | 12 | 08 | 34 | 19.5 | 22 |
| 10711-24-08RW | 10712-24-08RW | M24X1.5 | 12 | 08 | 34.5 | 20 | 24 |
| 10711-27-10RW | 10712-27-10RW | M27X1.5 | 16 | 10 | 37.5 | 20.5 | 27 |
| 10711-30-12RW | 10712-30-12RW | M30X1.5 | 20 | 12 | 40 | 23 | 32 |
| 10711-33-12RW | 10712-33-12RW | M33X2 | 20 | 12 | 43 | 26 | 36 |
| 10711-39-16RW | 10712-39-16RW | M39X2 | 25 | 16 | 49.7 | 27.5 | 41 |
| 10711-42-20RW | 10712-42-20RW | M42X2 | 32 | 20 | 50.7 | 28.5 | 46 |
| 10711-45-20RW | 10712-45-20RW | M45X2 | 32 | 20 | 50.7 | 28.5 | 46 |
Selection note: NATIONAL STANDARD METRIC MALE EXTERNAL THREAD 74° EXTERNAL CONE REF. GB/T5628. Verify thread size, sealing form and pressure rating against the equipment port before ordering. Common sizes are available from stock, and custom production to drawing or sample is available with material and plating options.
