STRICTLY MANUFACTURED IN ACCORDANCE WITH ISO 8434-1 AND DIN 3861 STANDARDS. THE CARBON STEEL FORGED BODY FEATURES OVERALL ZINC-PLATED RUST-PROOF TREATMENT. IT FEATURES A METRIC MALE EXTERNAL THREAD AND A 24° INTERNAL CONE METAL SEAL. EQUIPPED WITH A LIGHT SERIES THIN-WALL CLAMPING SLEEVE COMPATIBLE WITH LIGHT-DUTY STEEL WIRE BRAIDED HYDRAULIC HOSES, ENSURING SECURE CRIMPING, TENSILE RESISTANCE, LOW-PRESSURE PULSE RESISTANCE, AND MINIMAL PIPELINE BENDING WEAR.

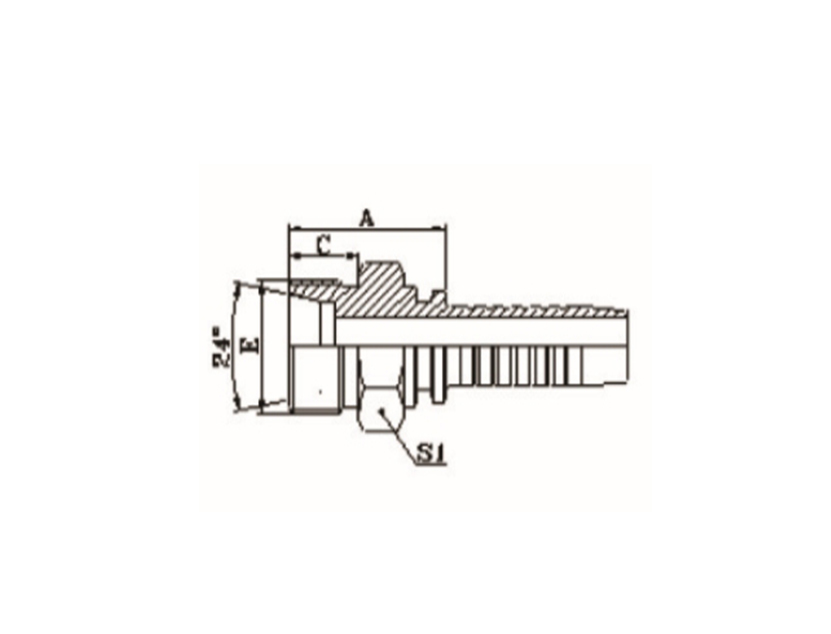

PART NO. | THREAD E | HOSE BORE | TUBE O.D. | DIMENSIONS | |||
|---|---|---|---|---|---|---|---|
| DN | DASH | A | C | S2 | |||
| 10411-12-04 | M12X1.5 | 6 | 04 | 6 | 22 | 10 | 12 |
| 10411-14-04 | M14X1.5 | 6 | 04 | 8 | 22 | 10 | 14 |
| 10411-14-05 | M14X1.5 | 8 | 05 | 8 | 22 | 10 | 14 |
| 10411-16-04 | M16X1.5 | 6 | 04 | 10 | 23.5 | 11 | 17 |
| 10411-16-05 | M16X1.5 | 8 | 05 | 10 | 23.5 | 11 | 17 |
| 10411-16-06 | M16X1.5 | 10 | 06 | 10 | 23.5 | 11 | 17 |
| 10411-18-05 | M18X1.5 | 8 | 05 | 12 | 24 | 11 | 19 |
| 10411-18-06 | M18X1.5 | 10 | 06 | 12 | 24 | 11 | 19 |
| 10411-22-06 | M22X1.5 | 10 | 06 | 15 | 26.5 | 12 | 24 |
| 10411-22-08 | M22X1.5 | 12 | 08 | 15 | 27 | 12 | 24 |
| 10411-26-08 | M26X1.5 | 12 | 08 | 18 | 28.5 | 12 | 27 |
| 10411-26-10 | M26X1.5 | 16 | 10 | 18 | 29.5 | 12 | 27 |
| 10411-27-10 | M27X1.5 | 16 | 10 | 18 | 32.5 | 14 | 30 |
| 10411-30-10 | M30X2 | 16 | 10 | 22 | 33.5 | 14 | 32 |
| 10411-30-12 | M30X2 | 20 | 12 | 22 | 33.5 | 14 | 32 |
| 10411-36-16 | M36X2 | 25 | 16 | 28 | 36 | 14 | 38 |
| 10411-45-20 | M45X2 | 32 | 20 | 35 | 40 | 16 | 46 |
| 10411-52-24 | M52X2 | 40 | 24 | 42 | 43 | 16 | 55 |
Selection note: METRIC MALE EXTERNAL THREAD 24° INTERNAL CONE LIGHT SERIES ISO 8434-1-DIN 3861. Verify thread size, sealing form and pressure rating against the equipment port before ordering. Common sizes are available from stock, and custom production to drawing or sample is available with material and plating options.
