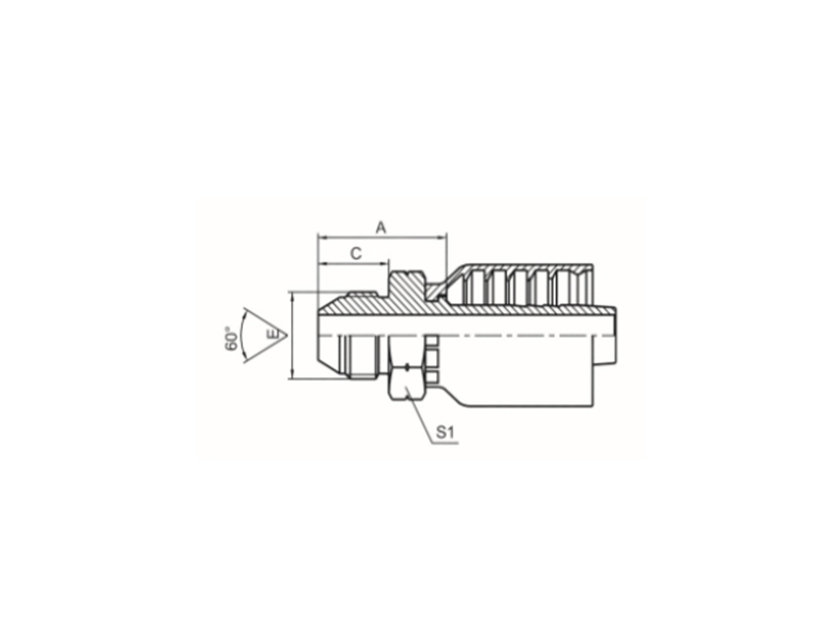

the main body features british standard parallel male threads with an integrated 60° flare seal head at the front, equipped with hex support flats and available in single-hex or double-hex configurations. available in straight, 45°, and 90° elbow configurations. compatible with standard and heavy-duty crimp ferrules for wire-braided and multi-layer wire-spiral high-pressure hydraulic hoses, ensuring a secure crimp bond with excellent pull-out resistance.
| PART NO. | THREAD E | HOSE BORE | DIMENSIONS | ||||
|---|---|---|---|---|---|---|---|
| BRAIDED | SPIRAL | DN | DASH | A | C | S2 | |
| 19611-04-04RW | -- | G1/4" X19 | 6 | 04 | 28 | 16 | 17 |
| 19611-06-06RW | -- | G3/8" X19 | 10 | 06 | 29.5 | 18 | 19 |
| 19611-08-08RW | 19612-08-08RW | G1/2" X14 | 12 | 08 | 34.5 | 20 | 22 |
| 19611-12-12RW | 19612-12-12RW | G3/4" X14 | 20 | 12 | 38 | 22 | 30 |
| 19611-16-16RW | 19612-16-16RW | G1" X11 | 25 | 16 | 44.2 | 24 | 36 |
Selection note: JAPANESE BRITISH STANDARD MALE THREAD 60° FLARE SEAT. Verify thread size, sealing form and pressure rating against the equipment port before ordering. Common sizes are available from stock, and custom production to drawing or sample is available with material and plating options.
