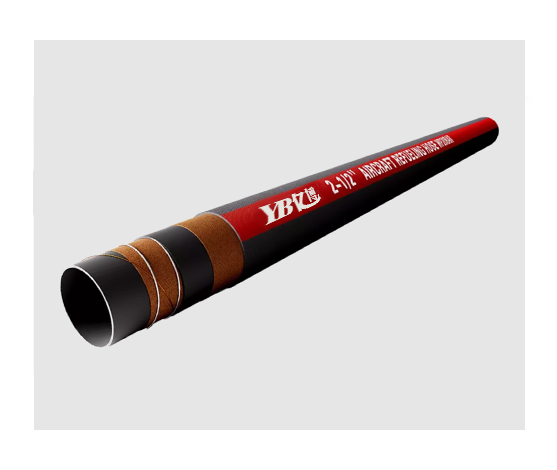

AIRCRAFT REFUELING HOSE

Structure: Structure: special fuel-resistant rubber inner liner, resistant to swelling and permeation of aviation fuel. multi-layer high-strength fiber braid and spiral steel wire composite reinforcement, high pressure resistance and vacuum resistance. weatherproof and fuel-resistant rubber cover, wear-resistant, ozone aging resistant, suitable for outdoor airport environment.

Application: Application: suitable for airport refueling trucks and ground fueling equipment, aircraft fuel filling, aviation kerosene transfer and mobile fuel transfer operation on apron.

Working Temperature: -20℃-80℃

Service Support: 0395-2668788

The Aircraft Fueling Hose is a specialized rubber hose designed for the delivery and defueling of aviation fuels (such as Jet A-1 kerosene and aviation gasoline), widely used on airport refueler trucks, hydrant dispensers, and fixed fueling facilities. Featuring an oil-resistant synthetic rubber inner tube and high-strength reinforcement structure, the hose delivers excellent static dissipation, fuel resistance, and vacuum capability—compliant with international aviation standards including EN 1361, EI 1529, and API 1529—to ensure safe and efficient aircraft fueling operations.

AROSD-300 SERIES (WORKING PRESSURE 20 BAR / 300 PSI, BURST PRESSURE 80 BAR / 1200 PSI)

ITEM CODE	I.D		O.D mm	W.P		B.P		WEIGHT kg/m	MAX LENGTH m
ITEM CODE	mm	inch	O.D mm	bar	psi	bar	psi	WEIGHT kg/m	MAX LENGTH m
AROSD032-300	32	1-1/4"	48.4	20	300	80	1200	1.68	61
AROSD038-300	38	1-1/2"	54.8	20	300	80	1200	2.05	61
AROSD051-300	51	2"	70.0	20	300	80	1200	2.85	61
AROSD064-300	64	2-1/2"	83.6	20	300	80	1200	3.72	61
AROSD076-300	76	3"	97.0	20	300	80	1200	4.65	61
AROSD102-300	102	4"	127.0	20	300	80	1200	7.50	61

Note: Specifications, pressures, colors, etc. can be customized according to requirements.
