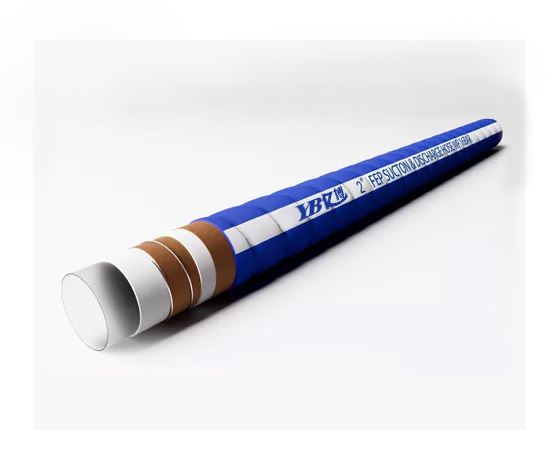

FEP CORRUGATED SUCTION‑DISCHARGE HOSE

Structure: structure: corrugated fep fluoroplastic inner liner with excellent chemical resistance and great flexibility; composite reinforcement of spiral steel wire and synthetic fiber for vacuum resistance and anti-collapse, suitable for suction‑discharge alternating service; epdm outer cover with wear‑resistant, uv‑resistant and anti‑aging performance.

Application: Applications: suitable for vacuum suction and pressure discharge with frequent bending, conveying strong acids, strong alkalis, high‑temperature organic solvents and other corrosive media. widely used in chemical, pharmaceutical, new energy, semiconductor and mobile tank truck loading and unloading.

Working Temperature: ‑60℃ ~ +200℃

Service Support: 0395-2668788

The FEP Corrugated Suction & Discharge Hose is a high-performance hose featuring a corrugated body made from Fluorinated Ethylene Propylene (FEP), combining the exceptional chemical resistance of FEP with the superior flexibility of a corrugated structure. The corrugation design significantly reduces the bending radius, allowing the hose to be easily coiled, installed in tight spaces, and to absorb equipment vibration and pipeline displacement—making it ideal for suction and discharge of corrosive media in applications requiring frequent bending, mobility, or vibration isolation.

FEPSD‑150 SERIES (WORKING PRESSURE 10 BAR / 150 PSI, BURST PRESSURE 40 BAR / 600 PSI)

ITEM CODE	I.D		O.D mm	W.P		B.P		WEIGHT kg/m	MAX LENGTH m
ITEM CODE	mm	inch	O.D mm	bar	psi	bar	psi	WEIGHT kg/m	MAX LENGTH m
FEPSD019-150	19	3/4"	32	10	150	40	600	0.83	40
FEPSD025-150	25	1"	38	10	150	40	600	1.02	40
FEPSD032-150	32	1-1/4"	45.5	10	150	40	600	1.31	40
FEPSD038-150	38	1-1/2"	52.2	10	150	40	600	1.63	40
FEPSD051-150	51	2"	65.2	10	150	40	600	2.11	40
FEPSD064-150	64	2-1/2"	79.2	10	150	40	600	2.75	40
FEPSD076-150	76	3"	91.2	10	150	40	600	3.22	40
FEPSD102-150	102	4"	120.4	10	150	40	600	5.48	40

FEPSD‑230 SERIES (WORKING PRESSURE 16 BAR / 230 PSI, BURST PRESSURE 64 BAR / 920 PSI)

ITEM CODE	I.D		O.D mm	W.P		B.P		WEIGHT kg/m	MAX LENGTH m
ITEM CODE	mm	inch	O.D mm	bar	psi	bar	psi	WEIGHT kg/m	MAX LENGTH m
FEPSD019-230	19	3/4"	34	16	230	64	920	0.97	40
FEPSD025-230	25	1"	40	16	230	64	920	1.20	40
FEPSD032-230	32	1-1/4"	47.5	16	230	64	920	1.51	40
FEPSD038-230	38	1-1/2"	54.2	16	230	64	920	1.87	40
FEPSD051-230	51	2"	68	16	230	64	920	2.58	40
FEPSD064-230	64	2-1/2"	81.6	16	230	64	920	3.30	40
FEPSD076-230	76	3"	93.6	16	230	64	920	3.85	40
FEPSD102-230	102	4"	123.2	16	230	64	920	6.35	40

Note: Specifications, pressures, colors, etc. can be customized according to requirements.
