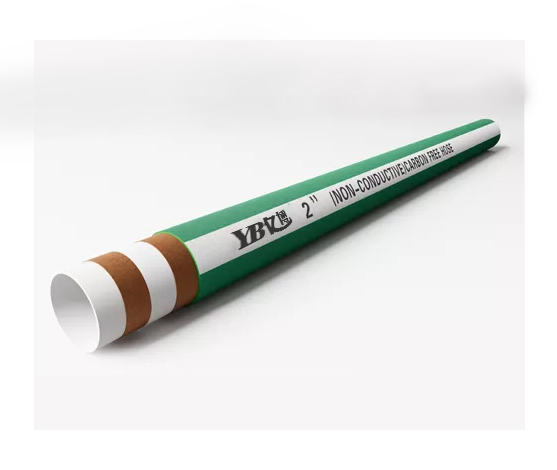

GREEN CARBON-FREE INSULATION

Structure: Structure: green carbon-free special rubber inner liner, no carbon precipitation, stable insulation performance. high-strength fiber braided reinforcement layer, tensile resistant and flexible. green carbon-free insulated rubber cover, insulation protection and aging resistant.

Application: Application: suitable for fluid transport scenarios requiring insulation protection and no carbon powder precipitation. used for power equipment, physicochemical laboratories, new energy equipment, fluid transport for precision instruments, and medium transport with high requirements for cleanliness and insulation.

Working Temperature: -20℃ ~ +80℃

Service Support: 0395-2668788

The Green Carbon-Free Insulating Hose is a specialized insulating hose engineered for high-voltage electrical environments. Its inner insulating layer is made from non-conductive rubber free of carbon black, fundamentally eliminating the risk of electrical conduction upon hose failure inherent in conventional carbon-loaded hoses. Combining high dielectric strength, pressure-rated water delivery, and eco-friendly halogen-free properties, this hose is widely used in cooling water systems of high-voltage electrical equipment such as electric arc furnaces and ladle refining furnaces—an ideal piping solution for personnel and equipment safety in steelmaking and foundry operations.

ARSGD-300 SERIES (WORKING PRESSURE 20 BAR / 300 PSI, BURST PRESSURE 80 BAR / 1200 PSI)

ITEM CODE	I.D		O.D mm	W.P		B.P		WEIGHT kg/m	MAX LENGTH m
ITEM CODE	mm	inch	O.D mm	bar	psi	bar	psi	WEIGHT kg/m	MAX LENGTH m
ARSGD032-300	32	1-1/4"	48.4	20	300	80	1200	1.68	61
ARSGD038-300	38	1-1/2"	54.8	20	300	80	1200	2.05	61
ARSGD051-300	51	2"	70.0	20	300	80	1200	2.85	61
ARSGD064-300	64	2-1/2"	83.6	20	300	80	1200	3.72	61
ARSGD076-300	76	3"	97.0	20	300	80	1200	4.65	61
ARSGD102-300	102	4"	127.0	20	300	80	1200	7.50	61

Note: Specifications, pressures, colors, etc. can be customized according to requirements.
