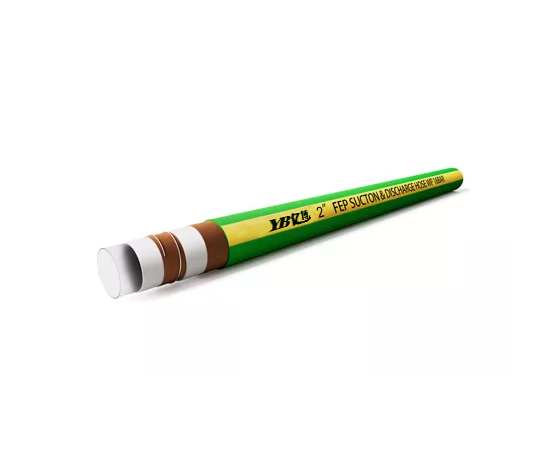

FEP SUCTION‑DISCHARGE HOSE

Structure: structure: fep fluoroplastic inner liner with superior chemical corrosion resistance; high‑strength steel wire plus synthetic fiber winding reinforcement for pressure and vacuum resistance, suitable for suction‑discharge service; epdm outer cover with wear‑resistant, uv‑resistant and anti‑aging performance.

Application: Applications: for suction and discharge service under vacuum and pressure conditions, conveying strong acids, strong alkalis, organic solvents and high‑temperature strongly corrosive media. widely used in chemical, pharmaceutical, lithium‑ion new energy, semiconductor and tank truck loading‑unloading industries.

Working Temperature: ‑60℃ ~ +200℃

Service Support: 0395-2668788

The FEP Suction & Discharge Hose is a high-performance composite hose featuring a Fluorinated Ethylene Propylene (FEP) inner liner, specifically designed for both suction and discharge of aggressive chemical media. Reinforced with a steel wire helix, the hose maintains its structural integrity under vacuum conditions without collapsing, while also withstanding positive discharge pressure—combining corrosion resistance, vacuum resistance, and pressure capability in one versatile hose for tank truck loading/unloading and in-plant chemical transfer applications.

FEPSD‑150 SERIES (WORKING PRESSURE 10 BAR / 150 PSI, BURST PRESSURE 40 BAR / 600 PSI)

ITEM CODE	I.D		O.D mm	W.P		B.P		WEIGHT kg/m	MAX LENGTH m
ITEM CODE	mm	inch	O.D mm	bar	psi	bar	psi	WEIGHT kg/m	MAX LENGTH m
FEPSD019-150	19	3/4"	32	10	150	40	600	0.83	40
FEPSD025-150	25	1"	38	10	150	40	600	1.02	40
FEPSD032-150	32	1-1/4"	45.5	10	150	40	600	1.31	40
FEPSD038-150	38	1-1/2"	52.2	10	150	40	600	1.63	40
FEPSD051-150	51	2"	65.2	10	150	40	600	2.11	40
FEPSD064-150	64	2-1/2"	79.2	10	150	40	600	2.75	40
FEPSD076-150	76	3"	91.2	10	150	40	600	3.22	40
FEPSD102-150	102	4"	120.4	10	150	40	600	5.48	40

FEPSD‑230 SERIES (WORKING PRESSURE 16 BAR / 230 PSI, BURST PRESSURE 64 BAR / 920 PSI)

ITEM CODE	I.D		O.D mm	W.P		B.P		WEIGHT kg/m	MAX LENGTH m
ITEM CODE	mm	inch	O.D mm	bar	psi	bar	psi	WEIGHT kg/m	MAX LENGTH m
FEPSD019-230	19	3/4"	34	16	230	64	920	0.97	40
FEPSD025-230	25	1"	40	16	230	64	920	1.20	40
FEPSD032-230	32	1-1/4"	47.5	16	230	64	920	1.51	40
FEPSD038-230	38	1-1/2"	54.2	16	230	64	920	1.87	40
FEPSD051-230	51	2"	68	16	230	64	920	2.58	40
FEPSD064-230	64	2-1/2"	81.6	16	230	64	920	3.30	40
FEPSD076-230	76	3"	93.6	16	230	64	920	3.85	40
FEPSD102-230	102	4"	123.2	16	230	64	920	6.35	40

Note: Specifications, pressures, colors, etc. can be customized according to requirements.
