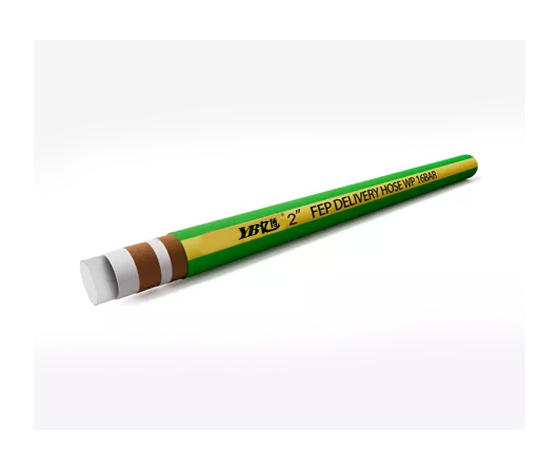

The FEP Transfer Hose is manufactured from Fluorinated Ethylene Propylene, a high-performance fluoropolymer. Combining the exceptional properties of PTFE with the processing advantages of thermoplastics, FEP hose offers outstanding chemical resistance, high-temperature capability, and an extremely low coefficient of friction—making it an ideal solution for fluid transfer in chemical, pharmaceutical, semiconductor, and food processing industries.
FEPSD‑150 SERIES (WORKING PRESSURE 10 BAR / 150 PSI, BURST PRESSURE 40 BAR / 600 PSI)
| ITEM CODE | I.D | O.D mm | W.P | B.P | WEIGHT kg/m | MAX LENGTH m | |||
| mm | inch | bar | psi | bar | psi | ||||
| FEPSD019-150 | 19 | 3/4" | 32 | 10 | 150 | 40 | 600 | 0.83 | 40 |
| FEPSD025-150 | 25 | 1" | 38 | 10 | 150 | 40 | 600 | 1.02 | 40 |
| FEPSD032-150 | 32 | 1-1/4" | 45.5 | 10 | 150 | 40 | 600 | 1.31 | 40 |
| FEPSD038-150 | 38 | 1-1/2" | 52.2 | 10 | 150 | 40 | 600 | 1.63 | 40 |
| FEPSD051-150 | 51 | 2" | 65.2 | 10 | 150 | 40 | 600 | 2.11 | 40 |
| FEPSD064-150 | 64 | 2-1/2" | 79.2 | 10 | 150 | 40 | 600 | 2.75 | 40 |
| FEPSD076-150 | 76 | 3" | 91.2 | 10 | 150 | 40 | 600 | 3.22 | 40 |
| FEPSD102-150 | 102 | 4" | 120.4 | 10 | 150 | 40 | 600 | 5.48 | 40 |
FEPSD‑230 SERIES (WORKING PRESSURE 16 BAR / 230 PSI, BURST PRESSURE 64 BAR / 920 PSI)
| ITEM CODE | I.D | O.D mm | W.P | B.P | WEIGHT kg/m | MAX LENGTH m | |||
| mm | inch | bar | psi | bar | psi | ||||
| FEPSD019-230 | 19 | 3/4" | 34 | 16 | 230 | 64 | 920 | 0.97 | 40 |
| FEPSD025-230 | 25 | 1" | 40 | 16 | 230 | 64 | 920 | 1.20 | 40 |
| FEPSD032-230 | 32 | 1-1/4" | 47.5 | 16 | 230 | 64 | 920 | 1.51 | 40 |
| FEPSD038-230 | 38 | 1-1/2" | 54.2 | 16 | 230 | 64 | 920 | 1.87 | 40 |
| FEPSD051-230 | 51 | 2" | 68 | 16 | 230 | 64 | 920 | 2.58 | 40 |
| FEPSD064-230 | 64 | 2-1/2" | 81.6 | 16 | 230 | 64 | 920 | 3.30 | 40 |
| FEPSD076-230 | 76 | 3" | 93.6 | 16 | 230 | 64 | 920 | 3.85 | 40 |
| FEPSD102-230 | 102 | 4" | 123.2 | 16 | 230 | 64 | 920 | 6.35 | 40 |
Note: Specifications, pressures, colors, etc. can be customized according to requirements.
