JAPANESE FLANGE

Structure: manufactured from precision-forged carbon steel as a single piece with a zinc-plated finish. available in straight, 45°, and 90° elbow configurations.

Application: widely used in high-flow main oil lines for Japanese excavators (such as komatsu, hitachi, and sumitomo), wheel loaders, large injection molding machines, and marine hydraulics. it is specifically designed for maintenance and replacement of original equipment.

Working Temperature: -40℃～120℃

Service Support: 0395-2668788

this fitting features code 61 (3000 psi) and code 62 (6000 psi) pressure series. it utilizes a four-bolt square flange base with an o-ring seal in the flange groove to achieve a flat face seal. it is compatible with standard and heavy-duty crimp ferrules, making it suitable for wire-braided and multi-layer wire-spiral high-pressure hydraulic hoses.

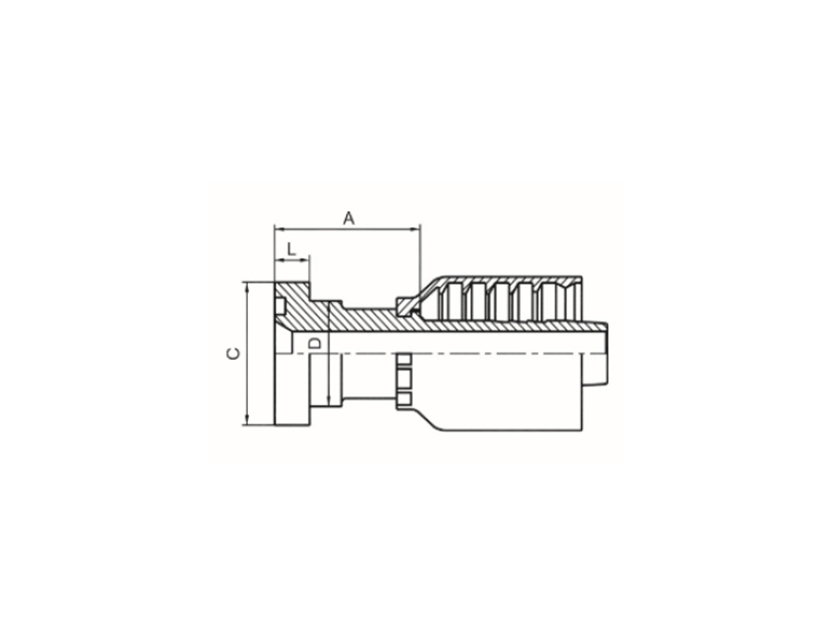

PART SPECIFICATION TABLE

PART NO.		FLANGE SIZE	HOSE BORE		DIMENSIONS
BRAIDED	SPIRAL	FLANGE SIZE	DN	DASH	A	C	D	L
88111-10-08RW	88112-10-08RW	5/8"	12	08	46.5	34.2	27.8	6.7
88111-10-10RW	88112-10-10RW	5/8"	16	10	47	34.2	27.8	6.7
88111-10-12RW	88112-10-12RW	5/8"	20	12	46	34.2	27.8	6.7

Selection note: JAPANESE FLANGE. Verify thread size, sealing form and pressure rating against the equipment port before ordering. Common sizes are available from stock, and custom production to drawing or sample is available with material and plating options.

GET A QUOTE
