Manufactured from precision-forged carbon steel as a single piece with a zinc-plated finish for rust resistance. The SAE UNF male thread features a 74° flare metal-to-metal seal at the end, which precisely mates with the 74° female flare seat to lock securely. This pure metal seal eliminates the need for O-rings. Compatible with standard crimp ferrules for wire-braided hydraulic hoses, it delivers high crimp strength, excellent pull-out resistance, and superior hydraulic impulse performance, ensuring reliable sealing even in high-vibration environments.

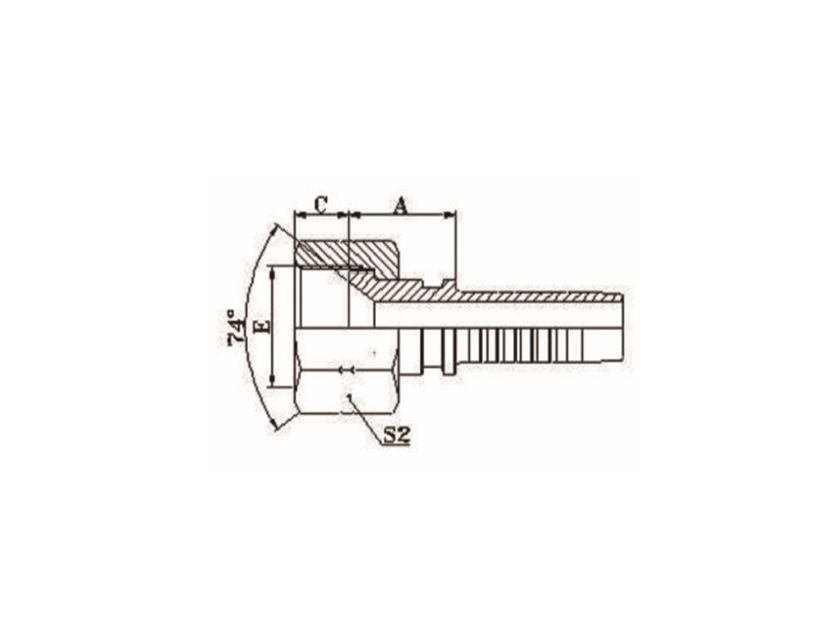

PART NO. | THREAD E | HOSE BORE | DIMENSIONS | |||
|---|---|---|---|---|---|---|
| DN | DASH | A | C | S2 | ||
| 26711-04-03 | 7/16" X20 | 5 | 03 | 14.5 | 9 | 15 |
| 26711-04-04 | 7/16" X20 | 6 | 04 | 15 | 9 | 15 |
| 26711-05-04 | 1/2" X20 | 6 | 04 | 16 | 9.5 | 17 |
| 26711-05-05 | 1/2" X20 | 8 | 05 | 16 | 9.5 | 17 |
| 26711-05-06 | 1/2" X20 | 10 | 06 | 16.5 | 9.5 | 17 |
| 26711-06-04 | 9/16" X18 | 6 | 04 | 16.5 | 10.5 | 19 |
| 26711-06-05 | 9/16" X18 | 8 | 05 | 16 | 10.5 | 19 |
| 26711-06-06 | 9/16" X18 | 10 | 06 | 16.5 | 10.5 | 19 |
| 26711-06-08 | 9/16" X18 | 12 | 08 | 16 | 10.5 | 19 |
| 26711-08-06 | 3/4" X16 | 10 | 06 | 18 | 11 | 24 |
| 26711-08-08 | 3/4" X16 | 12 | 08 | 18.5 | 11 | 24 |
| 26711-08-10 | 3/4" X16 | 16 | 10 | 19.5 | 11 | 24 |
| 26711-10-08 | 7/8" X14 | 12 | 08 | 19.5 | 13 | 27 |
| 26711-10-10 | 7/8" X14 | 16 | 10 | 20.5 | 13 | 27 |
| 26711-10-12 | 7/8" X14 | 20 | 12 | 20 | 13 | 27 |
| 26711-12-08T | 1.1/16" X12 | 12 | 08 | 19 | 15 | 32 |
| 26711-12-10 | 1.1/16" X12 | 16 | 10 | 21.5 | 15 | 32 |
| 26711-12-12 | 1.1/16" X12 | 20 | 12 | 21.5 | 15 | 32 |
| 26711-12-16 | 1.1/16" X12 | 25 | 16 | 23.5 | 15 | 32 |
| 26711-14-12 | 1.3/16" X12 | 20 | 12 | 21.5 | 15 | 36 |
| 26711-16-12T | 1.5/16" X12 | 20 | 12 | 18.5 | 16 | 41 |
| 26711-16-16 | 1.5/16" X12 | 25 | 16 | 24.5 | 16 | 41 |
| 26711-16-20 | 1.5/16" X12 | 32 | 20 | 24 | 16 | 41 |
| 26711-20-16T | 1.5/8" X12 | 25 | 16 | 23 | 17 | 50 |
| 26711-20-20W | 1.5/8" X12 | 32 | 20 | 26 | 17 | 50 |
| 26711-24-20W | 1.7/8" X12 | 32 | 20 | 26.5 | 20 | 55 |
| 26711-24-24W | 1.7/8" X12 | 40 | 24 | 26.5 | 20 | 55 |
| 26711-32-24T | 2.1/2" X12 | 40 | 24 | 27 | 23.5 | 75 |
| 26711-32-32T | 2.1/2" X12 | 50 | 32 | 27 | 23.5 | 75 |
Selection note: SAE JIC MALE THREAD 74° FLARE SEAT. Verify thread size, sealing form and pressure rating against the equipment port before ordering. Common sizes are available from stock, and custom production to drawing or sample is available with material and plating options.
