MANUFACTURED IN STRICT ACCORDANCE WITH THE ISO 12151-2 AND DIN 3865 HEAVY SERIES STANDARDS. THE BODY IS CONSTRUCTED FROM THICKENED FORGED CARBON STEEL AND ZINC-PLATED FOR RUST AND CORROSION PREVENTION. FEATURES A METRIC FEMALE INTERNAL THREAD STRUCTURE WITH A 24° CONE SEAT AND BUILT-IN O-RING COMPOSITE SEALING. THE COMBINATION OF METAL CONE POSITIONING AND RUBBER O-RING FILLING PROVIDES DUAL LEAK PREVENTION, ENSURING EFFECTIVE SEALING EVEN WITH MINOR INSTALLATION MISALIGNMENT. EQUIPPED WITH A HEAVY SERIES THICKENED SLEEVE COMPATIBLE WITH MULTI-LAYER STEEL WIRE SPIRAL HIGH-PRESSURE HOSES, ENSURING STRONG CRIMPING ENGAGEMENT, PULL-OUT RESISTANCE, HIGH-FREQUENCY HIGH-PRESSURE PULSE RESISTANCE, AND EFFECTIVE PREVENTION OF LOOSENING AND LEAKAGE.

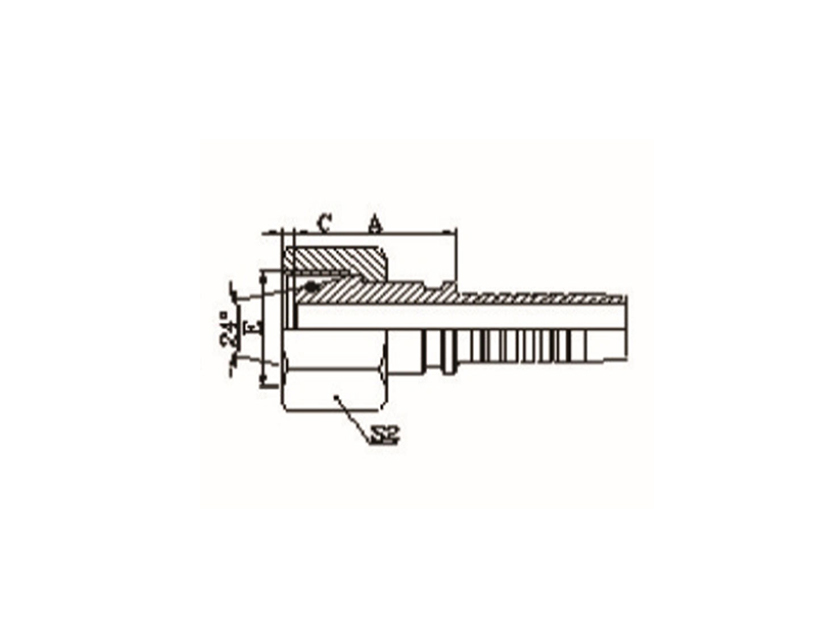

PART NO. | THREAD E | HOSE BORE | O-RING | DIMENSIONS | ||||
|---|---|---|---|---|---|---|---|---|
| DN | DASH | OD | A | C | S1 | |||
| 20511-14-04 | M16X1.5 | 6 | 04 | 6 | O04.5X1.5 | 27.4 | 1.5 | 19 |
| 20511-16-04 | M16X1.5 | 6 | 04 | 8 | O06.5X1.5 | 27.5 | 1.5 | 22 |
| 20511-16-05 | M16X1.5 | 8 | 05 | 8 | O06.5X1.5 | 27.5 | 1.5 | 22 |
| 20511-18-04T | M18X1.5 | 6 | 04 | 10 | O08.0X1.5 | 26 | 1.5 | 22 |
| 20511-18-06 | M18X1.5 | 10 | 06 | 10 | O08.0X1.5 | 29.5 | 2 | 24 |
| 20511-20-06T | M20X1.5 | 10 | 06 | 12 | O10.0X1.5 | 27.5 | 2.5 | 24 |
| 20511-20-08 | M20X1.5 | 12 | 08 | 12 | O10.0X1.5 | 31.5 | 2.5 | 27 |
| 20511-22-06T | M22X1.5 | 10 | 06 | 14 | O11.0X2.0 | 28.5 | 3 | 27 |
| 20511-22-08 | M22X1.5 | 12 | 08 | 14 | O11.0X2.0 | 32.5 | 2.5 | 27 |
| 20511-24-06T | M24X1.5 | 10 | 06 | 16 | O13.0X2.0 | 27 | 3 | 30 |
| 20511-24-08T | M24X1.5 | 12 | 08 | 16 | O13.0X2.0 | 30 | 3 | 30 |
| 20511-30-10T | M30X2 | 16 | 10 | 20 | O16.3X2.4 | 33.5 | 2.5 | 36 |
| 20511-30-12 | M30X2 | 20 | 12 | 20 | O16.3X2.4 | 37 | 3 | 36 |
| 20511-36-12T | M36X2 | 20 | 12 | 25 | O20.3X2.4 | 37 | 3.2 | 46 |
| 20511-36-14T | M36X2 | 22 | 14 | 25 | O20.3X2.4 | 37 | 3.2 | 46 |
| 20511-42-12T | M42X2 | 20 | 12 | 30 | O25.3X2.4 | 37.5 | 3.9 | 50 |
| 20511-42-16T | M42X2 | 25 | 16 | 30 | O25.3X2.4 | 41 | 3.9 | 50 |
| 20511-52-20T | M52X2 | 32 | 20 | 38 | O33.3X2.4 | 44 | 4.5 | 60 |
| 20511-52-24T | M52X2 | 40 | 24 | 38 | O33.3X2.4 | 44 | 4.5 | 60 |
Selection note: METRIC FEMALE INTERNAL THREAD 24° CONE WITH O-RING HEAVY SERIES ISO 12151-2 DIN 386. Verify thread size, sealing form and pressure rating against the equipment port before ordering. Common sizes are available from stock, and custom production to drawing or sample is available with material and plating options.
