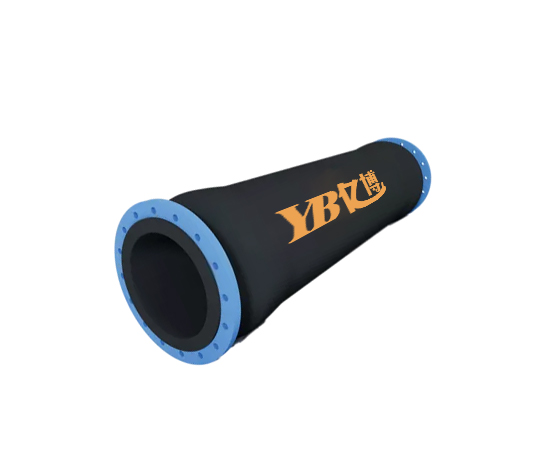

The Dredging Discharge Rubber Hose is a large-bore, high-pressure rubber hose specifically designed for dredger discharge systems. It transports slurry and sand-gravel mixtures excavated by cutter suction and trailing suction hopper dredgers through discharge pipelines to designated disposal areas or reclamation sites. Available in self-floating discharge hose (surface floating line), submerged discharge hose (sinking line), and end hose configurations, the product features a highly wear-resistant liner and high-strength reinforcement structure—delivering excellent pressure resistance, abrasion resistance, flexing fatigue life, and seawater environmental adaptability. It withstands long-term positive-pressure conveying of high-flow, high-concentration slurry in compliance with ISO 28017, serving as a critical conveying component in dredging and reclamation projects.
| I.D | W.P bar | LENGTH m | |
| mm | inch | ||
| 200 | 8" | 10~20 | 11.8 |
| 250 | 10" | 10~20 | 11.8 |
| 300 | 12" | 10~20 | 11.8 |
| 350 | 14" | 10~20 | 11.8 |
| 400 | 16" | 10~20 | 11.8 |
| 450 | 18" | 10~20 | 11.8 |
| 500 | 20" | 10~20 | 11.8 |
| 550 | 22" | 10~20 | 11.8 |
| 600 | 24" | 10~20 | 11.8 |
| 700 | 28" | 10~20 | 11.8 |
| 800 | 32" | 10~20 | 11.8 |
| 900 | 36" | 10~20 | 11.8 |
| 1000 | 40" | 10~20 | 11.8 |
| 1100 | 44" | 10~20 | 11.8 |
Note: Specifications, pressures, colors, etc. can be customized according to requirements.
