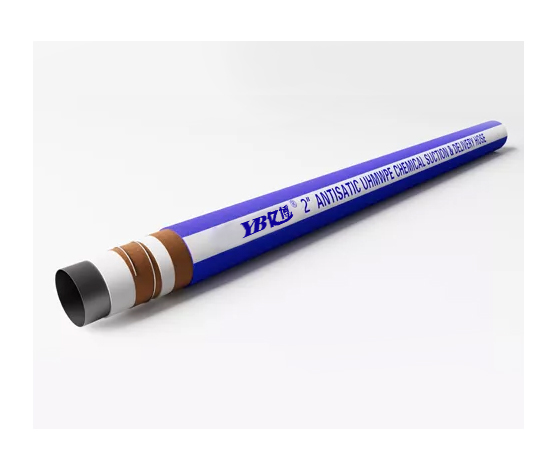

CONDUCTIVE CHEMICAL SUCTION AND DISCHARGE HOSE

Structure: The inner wall adopts uhmwpe+epdm material, featuring high temperature resistance, oxidation resistance, excellent corrosion resistance to high‑concentration acid and alkali chemicals. it also has good uv resistance, aging resistance, wear resistance and anti‑static performance. with outstanding flexibility, the hose can adapt to a variety of harsh application scenarios.

Application: Used for suction and discharge, loading and unloading of chemicals requiring explosion‑proof and anti‑static performance, compatible with 98% of various corrosive media (strong acids, strong alkalis, various solvents).

Working Temperature: ‑35℃ ~ +100℃

Service Support: 0395-2668788

Suitable for conveying flammable, explosive and static-prone chemicals in industries such as chemical processing, pharmaceuticals, paints and inks — including the suction and discharge of acids, alkalis and organic solvents, tank truck loading and unloading, storage tank transfer, and chemical transfer operations at docks and on ships. The hose features an embedded conductive layer with grounding terminals, which continuously dissipates static electricity and prevents spark discharge that could trigger combustion or explosion, while offering both vacuum resistance for suction and pressure resistance for discharge, making it a commonly used hose for safe chemical transfer.

150 SERIES (WORKING PRESSURE 10 BAR / 150 PSI, BURST PRESSURE 30 BAR / 450 PSI)

ITEM CODE	I.D		O.D mm	W.P		B.P		WEIGHT kg/m	MAX LENGTH m
ITEM CODE	mm	inch	O.D mm	bar	psi	bar	psi	WEIGHT kg/m	MAX LENGTH m
ASCHSD019-150	19	3/4"	31.2	10	150	30	450	0.63	40
ASCHSD025-150	25	1"	37.2	10	150	30	450	0.78	40
ASCHSD032-150	32	1-1/4"	44.6	10	150	30	450	0.96	40
ASCHSD038-150	38	1-1/2"	51.6	10	150	30	450	1.21	40
ASCHSD045-150	45	1-3/4"	58.6	10	150	30	450	1.40	40
ASCHSD051-150	51	2"	64.6	10	150	30	450	1.56	40
ASCHSD057-150	57	2-1/4"	70.6	10	150	30	450	1.72	40
ASCHSD064-150	64	2-1/2"	78.6	10	150	30	450	2.19	40
ASCHSD076-150	76	3"	90.6	10	150	30	450	2.56	40
ASCHSD102-150	102	4"	117.4	10	150	30	450	3.34	40
ASCHSD152-150	152	6"	171.8	10	150	30	450	7.62	40

230 SERIES (WORKING PRESSURE 16 BAR / 230 PSI, BURST PRESSURE 48 BAR / 690 PSI)

ITEM CODE	I.D		O.D mm	W.P		B.P		WEIGHT kg/m	MAX LENGTH m
ITEM CODE	mm	inch	O.D mm	bar	psi	bar	psi	WEIGHT kg/m	MAX LENGTH m
ASCHSD019-230	19	3/4"	31.2	16	230	48	690	0.63	40
ASCHSD025-230	25	1"	37.2	16	230	48	690	0.78	40
ASCHSD032-230	32	1-1/4"	44.6	16	230	48	690	0.96	40
ASCHSD038-230	38	1-1/2"	52	16	230	48	690	1.26	40
ASCHSD045-230	45	1-3/4"	59	16	230	48	690	1.46	40
ASCHSD051-230	51	2"	65	16	230	48	690	1.62	40
ASCHSD057-230	57	2-1/4"	71	16	230	48	690	1.80	40
ASCHSD064-230	64	2-1/2"	79.4	16	230	48	690	2.19	40
ASCHSD076-230	76	3"	91.4	16	230	48	690	2.56	40
ASCHSD102-230	102	4"	120.2	16	230	48	690	4.01	40
ASCHSD152-230	152	6"	175	16	230	48	690	8.80	40

300 SERIES (WORKING PRESSURE 20 BAR / 300 PSI, BURST PRESSURE 60 BAR / 900 PSI)

ITEM CODE	I.D		O.D mm	W.P		B.P		WEIGHT kg/m	MAX LENGTH m
ITEM CODE	mm	inch	O.D mm	bar	psi	bar	psi	WEIGHT kg/m	MAX LENGTH m
ASCHSD019-300	19	3/4"	31.2	20	300	60	900	0.63	40
ASCHSD025-300	25	1"	37.6	20	300	60	900	0.78	40
ASCHSD032-300	32	1-1/4"	46.6	20	300	60	900	1.21	40
ASCHSD038-300	38	1-1/2"	53.4	20	300	60	900	1.40	40
ASCHSD045-300	45	1-3/4"	60.4	20	300	60	900	1.61	40
ASCHSD051-300	51	2"	66.4	20	300	60	900	1.79	40
ASCHSD057-300	57	2-1/4"	72.4	20	300	60	900	1.98	40
ASCHSD064-300	64	2-1/2"	82.2	20	300	60	900	2.64	40
ASCHSD076-300	76	3"	94.2	20	300	60	900	3.07	40
ASCHSD102-300	102	4"	121.4	20	300	60	900	4.40	40
ASCHSD152-300	152	6"	175.4	20	300	60	900	9.02	40

Note: Specifications, pressure, colors, etc. can be customized according to requirements.
