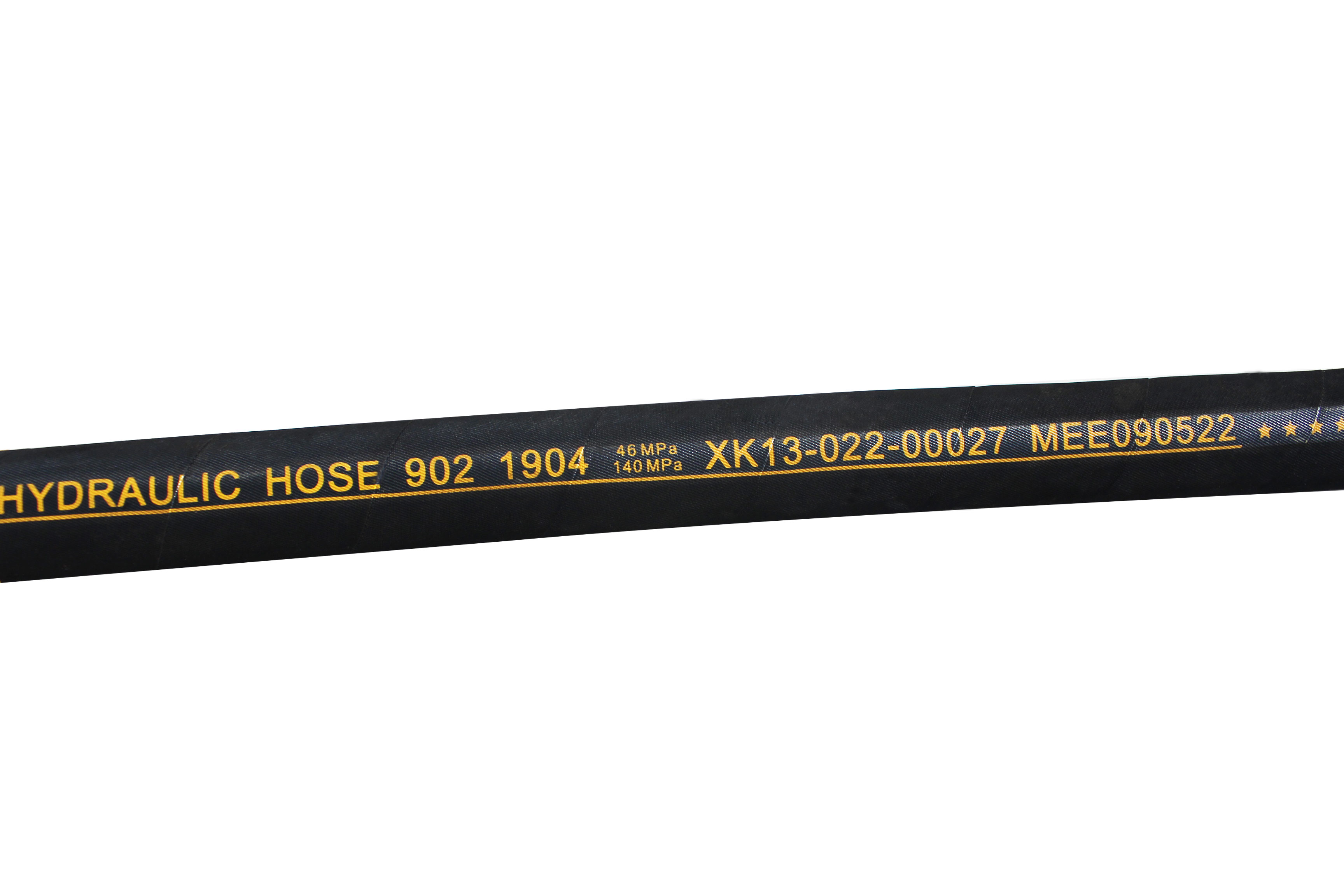

    902 type steel wire braided hydraulic rubber hose

    Date of release:2018-03-30

    Number of hits:0

    Contact telephone :138-3958-8935
    Description
    consultations
    Mobile phone sweep


    Inner adhesive layer: oil resistant synthetic rubber

    Reinforcement: 2 layers, 4 layers or 6 layers of strong wire wound layers

    Cover: Appearance is black, weather resistant and abrasion resistant synthetic rubber

    Safety factor: 3:1

    Uses: Suitable for hydraulic transmission of mineral oil, hydraulic oil or water

    Operating temperature range: -40°C to +100°C (-40oF to +212oF)


    TYPE
    Metric
    specification
    Inch system
    specification

    I.D

    W.D

    O.D

    Max.W.P

    P.P

    Min.B.P

    Min.B.R

    W.T
    SIZESIZEMinMaxMinMaxMinMax
    mminchMinMaxMinMaxMinMaxMPaMPaMPammkg/m
    902-1302131/212.713.518.820.423.025.033421002100.70
    902-1602165/815.716.622.223.826.528.533421002600.97
    902-1902193/418.719.826.227.830.032.02835842801.09
    902-2202227/821.722.829.230.833.536.52430723201.31
    902-250225124.725.832.233.836.539.52128643601.45
    902-3202321-1/431.632.640.241.844.047.01823564601.93
    902-3802381-1/237.738.847.048.650.553.51523465602.49
    902-4502451-3/444.745.854.055.658.561.51320396402.86
    902-510251250.552.059.661.264.067.01320397203.31
    902-1004103/89.710.518.219.822.024.0701052101800.90
    902-1304131/212.713.521.423.025.527.557861722101.04
    902-1604165/815.716.625.226.839.031.053801602601.44
    902-1904193/418.719.829.230.832.535.546691402801.62
    902-2204227/821.722.832.233.836.539.541621243201.98
    902-250425124.725.835.236.839.542.535531123602.19
    902-3204321-1/431.632.643.244.847.550.53248844602.85
    902-3804381-1/237.738.849.851.854.557.52538755603.79
    902-4504451-3/444.745.856.858.861.564.52132646404.34
    902-510451250.552.062.864.867.570.52132647204.88
    902-1006103/89.710.520.022.024.026.0801202401801.18
    902-1306131/212.713.523.825.828.530.5721082162101.34
    902-1606165/815.716.628.030.031.534.5701052042601.95
    902-1906193/418.719.832.034.035.538.560901802802.17
    902-2206227/821.722.835.037.039.542.553801603202.73
    902-250625124.725.838.040.042.545.550751523603.00
    902-3206321-1/431.632.646.048.050.553.541621244603.89
    902-3806381-1/237.738.852.854.857.560.536541085605.22
    902-4506451-3/444.745.859.861.864.567.53248966405.97
    902-510651250.552.066.268.271.574.03248967206.70
