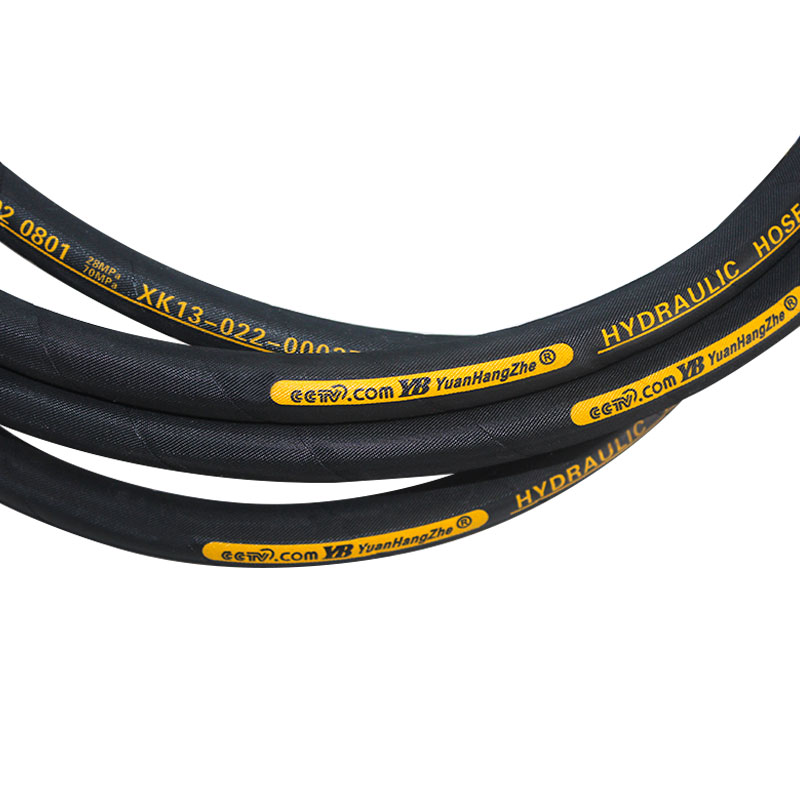

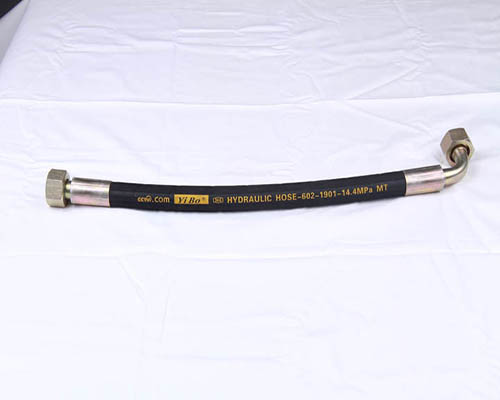

602 type steel wire braided hydraulic rubber hose

Date of release：2018-03-30

Number of hits：0

Contact telephone ：138-3958-8935

Share： Reproduction More

Description: consultations; Mobile phone sweep

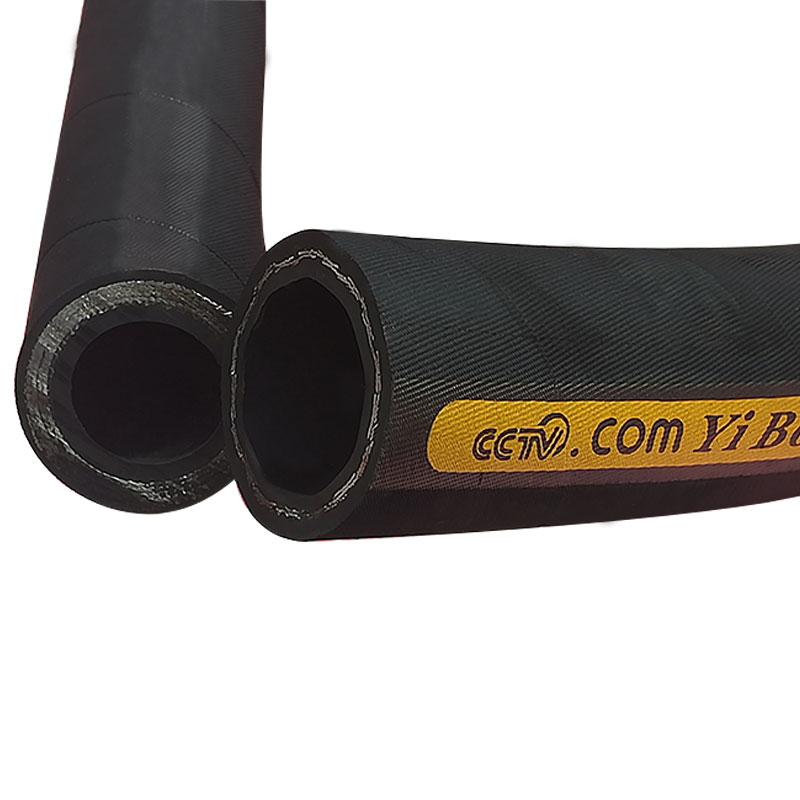

Inner adhesive layer: oil resistant synthetic rubber

Reinforcement: 1 layer, 2 or 3 layers of strong steel braid

Cover: Appearance is black glossy or black fabric, weather resistant and wear-resistant synthetic rubber

Safety factor: 2.5:1

Uses: Suitable for hydraulic transmission of mineral oil, hydraulic oil or water

Operating temperature range: -40°C to +100°C (-40oF to +212oF)

TYPE	Metric specification	Inch system specification	I.D		W.D		O.D		Max.W.P	P.P	Min.B.P	Min.B.R	W.T
	Metric specification	Inch system specification	I.D		W.D		O.D
	SIZE	SIZE	Min	Max	Min	Max	Min	Max
	mm	inch	Min	Max	Min	Max	Min	Max	MPa	MPa	MPa	mm	kg/m
601	6	1/4	5.5	6.5	11.1	12.1	15.2	17	32	40	80	100	0.35
801	8	5/16	7.5	8.5	13.1	14.1	17.2	19	28	35	70	115	0.43
1001	10	3/8	9.5	10.5	15.1	16.1	19.2	21	25.6	32	64	130	0.49
1301	12.5	1/2	12.5	13.5	18.9	19.9	23	25.2	22.4	33.6	56	180	0.64
1601	16	5/8	15.5	15.5	22	23	26	28.2	16.8	21	42	205	0.75
1901	19	3/4	18.5	19.5	25	26	29	31.2	14.4	18	36	240	0.84
2201	22	7/8	21.5	22.5	28	29	32	34.2	12.8	16	32	280	1.00
2501	25	1	24.5	25.5	31.5	32.5	36	38.2	11.2	14	28	300	1.10
3201	31.5	1-1/4	31.3	32.7	38.5	39.5	42.8	45.5	9	11.5	22.5	420	1.40
3801	38	1-1/2	37.3	38.7	45	46	49	51.5	7	9	17.5	500	1.58
4501	45.4	1-3/4	44	46	52	53	55.5	57.5	5	8	12.5	550	1.80
5101	51	2	50	52	57.7	58.8	61.6	66.4	3	6	7.5	630	1.99
602	6	1/4	5.5	6.5	12.9	13.9	17.2	19	56	70	140	100	0.48
802	8	5/16	7.5	8.5	14.9	15.9	19.2	21	48	60	120	115	0.60
1002	10	3/8	9.5	10.5	16.9	17.9	21.2	23	40	50	100	130	0.68
1302	12.5	1/2	12.5	13.5	20.7	21.7	25	27.2	36	45	90	180	0.93
1602	16	5/8	15.5	15.5	23.7	24.7	28	30.2	32	40	80	205	1.07
1902	19	3/4	18.5	19.5	26.7	27.7	31	33.2	25	31.5	62	240	1.18
2202	22	7/8	21.5	22.5	30	31	34	36.2	22	27.5	55	280	1.28
2502	25	1	24.5	25.5	33.5	34.5	38	40.2	21	26.5	52	300	1.52
3202	31.5	1-1/4	31.3	32.7	40.2	41.2	44.8	57.5	17	21.5	42.5	420	1.91
3802	38	1-1/2	37.3	38.7	46.5	47.5	50	52.5	12	15	30	500	2.10
4502	45.4	1-3/4	44	46	53.5	54.5	57	59	9	13.5	22.5	55	2.40
5102	51	2	50	52	59.5	60.5	63.8	66.4	8	12	20	630	2.51
803	8	5/16	7.5	8.5	16.5	17.5	20.2	22	50	75	125	115	0.79
1003	10	3/8	9.5	10.5	18.5	19.5	22.2	24	45	62.5	112.5	130	0.90
1303	12.5	1/2	12.5	13.5	22.5	23.5	26	28.2	40	56	100	180	1.20
1603	16	5/8	15.5	15.5	25.5	26.5	29	31.2	35	43.5	87.5	205	1.39
1903	19	3/4	18.5	19.5	28.5	29.5	32	34.2	28	35	70.5	240	1.54
2202	22	7/8	21.5	22.5	31.5	32.5	35	36.2	25	31.5	62.5	280	1.66
2503	25	1	24.5	25.5	34.6	35.6	38	40.2	24	30	60.5	300	1.97
3203	31.5	1-1/4	31.3	32.7	42	43	45.8	48.5	19	24	47.5	420	2.48
3803	38	1-1/2	37.3	38.7	48	49	52	54.5	15	19	37.5	500	2.90
