EN857 SC Wire Braided Rubber Hose

Date of release：2018-03-30

Number of hits：0

Contact telephone ：138-3958-8935

Share： Reproduction More

Description: consultations; Mobile phone sweep

It is used to transport hydraulic fluids and water-based fluids.

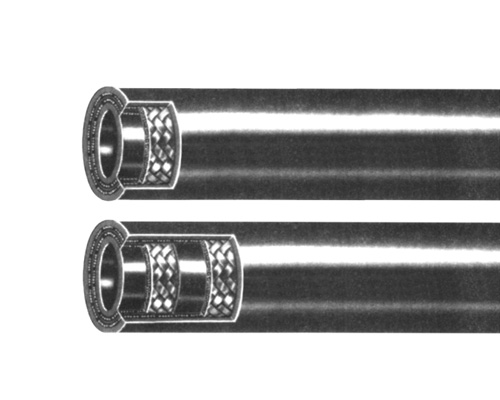

The hose is made from special rubber with excellent oil resistant and weather resistant and reinforced by coppered steel wire, presents black glazing surface or black linen finish. It complies with DIN EN857, with working temperature range from -40°C to 100°C (-40°F~+212°F).

产品型号 TPYE	公制规格	英制规格	软管内径 I.D		增强层外径 W.D		软管外径 O.D	最大工作压力 Max.W.P	试验压力 P.P	最小爆破压力 Min.B.P	最小弯曲半径 Min.B.R	参考重量 W.T
	公制规格	英制规格	软管内径 I.D		增强层外径 W.D		软管外径 O.D
	SIZE	SIZE	最小	最大	最小	最大	最大
	mm	inch	Min	Max	Min	Max	Max	MPa	MPa	MPa	mm	kg/m
1SC-04	6.3	1/4	6.1	6.9	9.6	10.8	13.5	22.5	45.0	90.0	75	0.21
1SC-05	8.0	5/16	7.7	8.5	10.9	12.1	14.5	21.5	43.0	86.0	85	0.27
1SC-06	9.5	3/8	9.3	10.1	12.7	14.5	16.9	18.0	36.0	72.0	90	0.35
1SC-08	12.7	1/2	12.3	13.5	15.9	18.1	20.4	16.0	32.0	64.0	130	0.45
1SC-10	16.0	5/8	15.5	16.7	19.8	21.0	23.0	13.0	26.0	52.0	150	0.51
1SC-12	19.0	3/4	18.6	19.8	23.2	24.4	26.7	10.5	21.0	42.0	180	0.58
1SC-16	25.4	1	25.0	26.4	30.7	31.9	34.9	8.8	17.6	35.5	230	0.98
2SC-04	6.3	1/4	6.1	6.9	10.6	11.7	14.2	40.0	80	160	75	0.35
2SC-05	8.0	5/16	7.7	8.5	12.1	13.3	16.0	35.0	70	140	85	0.40
2SC-06	9.5	3/8	9.3	10.1	14.4	15.6	18.3	33.0	66	132	90	0.49
2SC-08	12.7	1/2	12.3	13.5	17.5	19.1	21.5	27.5	55	110	130	0.60
2SC-10	16.0	5/8	15.5	16.7	20.5	22.3	24.7	25.0	50	100	170	0.75
2SC-12	19.0	3/4	18.6	19.8	24.6	26.4	28.6	21.5	43	86	200	0.95
2SC-16	25.4	1	25.0	26.4	32.6	34.3	36.6	16.5	33	66	250	1.30
