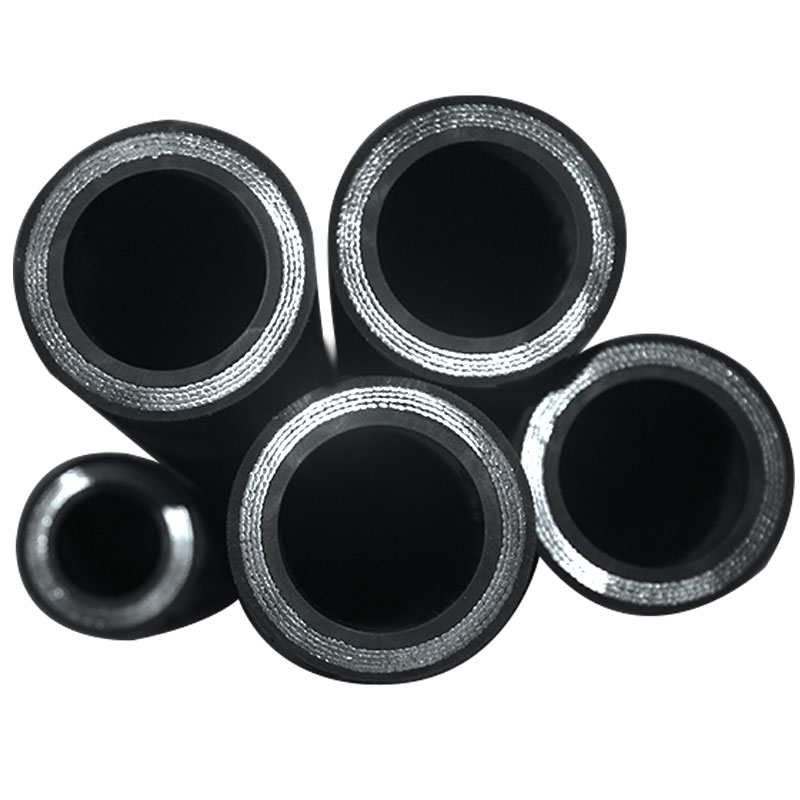

SAE 100R15 Heavy High Pulse Multiply Wire Braided Rubber Hos

Date of release：2018-03-30

Number of hits：0

Contact telephone ：138-3958-8935

Share： Reproduction More

Description: consultations; Mobile phone sweep

Applications: It is suitable for petroleum base hydraulic oil with temperature range from -40°C to 121°C (-40°F~+250°F).

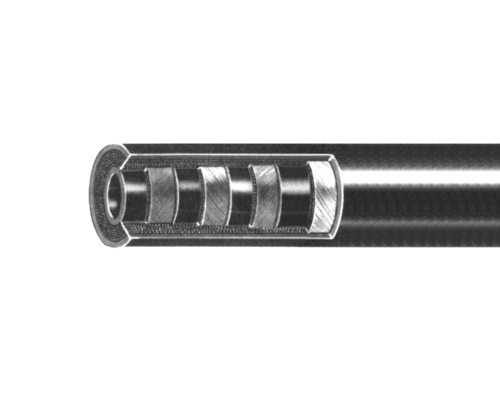

Features: It is composed of one internal oilproof synthetic rubber layer, multiply super wire alternately spirally-wound layers and one external oilproof and weatherproof synthetic rubber layer.

产品型号 TYPE	公制规格	英制规格	软管内径 I.D		增强层外径 W.D	软管外径 O.D	最大工作压力 Max.W.P	试验压力 P.P	最小爆破压力 Min.B.P	最小弯曲半径 Min.B.R	参考重量 W.T
	公制规格	英制规格	软管内径 I.D		增强层外径 W.D	软管外径 O.D
	SIZE	SIZE	最小	最大	最大	最大
	mm	inch	Min	Max	Max	Max	MPa	MPa	MPa	mm	kg/m
R15-06	10	3/8	9.3	10.1	20.3	23.3	42	84	168	150	0.80
R15-08	12.5	1/2	12.3	13.5	24.0	26.8	42	84	168	200	0.55
R15-12	19	3/4	18.6	19.8	32.9	36.1	42	84	168	265	1.85
R15-16	25	1	25.0	26.4	38.9	42.9	42	84	168	330	2.90
R15-20	31.5	1-1/4	31.4	33.0	48.4	51.5	42	84	168	445	4.20
R15-24	38	1-1/2	37.7	39.3	56.3	59.6	42	84	168	530	5.60
