头部内置 60° 金属内锥硬密封，配合 BSPP 内螺纹 60° 外锥接头贴合锁紧，纯金属密封，无需密封圈；有直头、45°、90° 弯头可选，配套轻重系列套筒，适配编织、钢丝缠绕液压胶管，扣压结合强度高，抗拔脱、耐压力脉冲，震动工况不易渗漏。

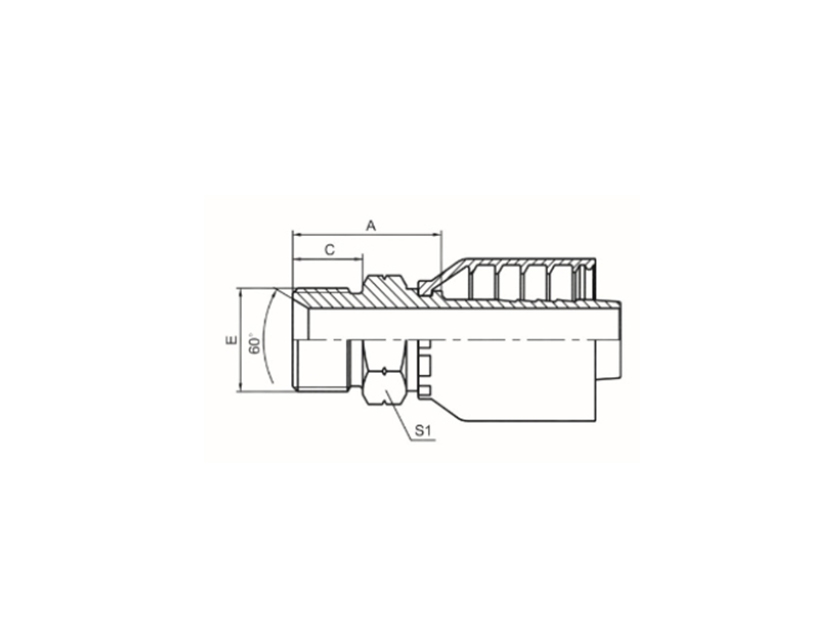

| 代 号 PART NO. | 螺纹E THREAD E | 胶 管 HOSE BORE | 尺 寸 DIMENSIONS | ||||
|---|---|---|---|---|---|---|---|
| 编织 BRAIDED | 缠绕 SPIRAL | 公称内径 DN | 标号 DASH | A | C | S1 | |
| 12211-02-04RW | -- | G1/8" X28 | 6 | 04 | 22 | 10 | 12 |
| 12211-02-04RW | -- | G1/4" X28 | 6 | 04 | 24 | 12 | 14 |
| 12211-02-04RW | -- | G1/4" X28 | 8 | 05 | 24 | 12 | 14 |
| 12211-02-04RW | -- | G1/4" X28 | 10 | 06 | 23.5 | 12 | 14 |
| 12211-02-04RW | -- | G3/8" X19 | 6 | 04 | 25.5 | 13.5 | 17 |
| 12211-02-04RW | -- | G3/8" X19 | 8 | 05 | 25.5 | 13.5 | 17 |
| 12211-02-04RW | -- | G3/8" X19 | 10 | 06 | 25 | 13.5 | 17 |
| 12211-02-04RW | 12212-02-04RW | G3/8" X19 | 12 | 08 | 26 | 13.5 | 19 |
| 12211-08-06RW | 12212-08-06RW | G1/2" X14 | 10 | 06 | 29.5 | 16 | 22 |
| 12211-08-08RW | 12212-08-08RW | G1/2" X14 | 12 | 08 | 30.5 | 16 | 22 |
| 12211-08-10RW | 12212-08-10RW | G1/2" X14 | 16 | 10 | 29.5 | 16 | 22 |
| 12211-10-10RW | 12212-10-10RW | G5/8" X14 | 16 | 10 | 57 | 8 | 27 |
| 12211-10-12RW | 12212-10-12RW | G5/8" X14 | 20 | 12 | 63.2 | 8 | 30 |
| 12211-12-08RW | 12212-12-08RW | G3/4" X14 | 12 | 08 | 35 | 18.5 | 27 |
| 12211-12-10RW | 12212-12-10RW | G3/4" X14 | 16 | 10 | 34.5 | 18.5 | 27 |
| 12211-12-12RW | 12212-12-12RW | G3/4" X14 | 20 | 12 | 38.7 | 18.5 | 32 |
| 12211-16-12RW | 12212-16-12RW | G1" X11 | 20 | 12 | 37.5 | 20.5 | 36 |
| 12211-16-16RW | 12212-16-16RW | G1" X11 | 25 | 16 | 40.7 | 20.5 | 36 |
| 12211-20-16RW | 12212-20-16RW | G1.1/4" X11 | 25 | 16 | 42.7 | 20.5 | 46 |
| 12211-20-20RW | 12212-20-20RW | G1.1/4" X11 | 32 | 20 | 48 | 23 | 50 |
| 12211-24-24RW | 12212-24-24RW | G1.1/2" X11 | 40 | 24 | 52.5 | 25.5 | 65 |
| 12211-32-32RW | 12212-32-32RW | G2" X11 | 50 | 32 | 56 | 25.5 | 65 |
