碳钢整体锻压成型，镀锌防锈；90° 直角弯结构，**BSPP 英制平行内螺纹**，内置 60° 金属球面自定心硬密封，球面可自适应安装微小角度偏差，纯金属贴合密封，无需 O 型圈 。

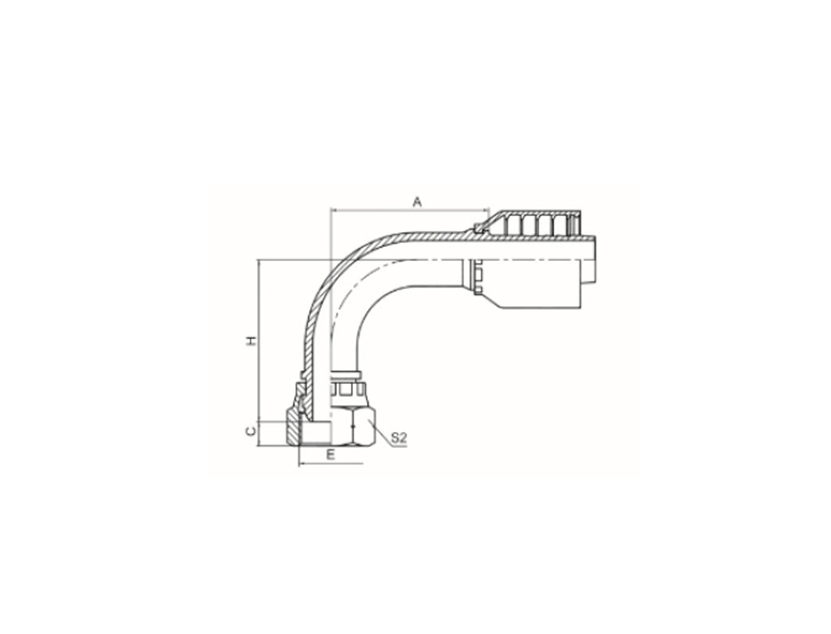

| 代 号 PART NO. | 螺纹E THREAD E | 胶 管 HOSE BORE | 尺 寸 DIMENSIONS | |||||
|---|---|---|---|---|---|---|---|---|
| 编织 BRAIDED | 缠绕 SPIRAL | 公称内径 DN | 标号 DASH | A | C | H | S2 | |
| 22191-02-04RW | -- | G1/8" X28 | 6 | 04 | 31.5 | 2 | 38 | 14 |
| 22191-04-04RW | -- | G1/4" X19 | 6 | 04 | 31.5 | 4 | 38 | 19 |
| 22191-06-05RW | -- | G3/8" X19 | 8 | 05 | 34.5 | 5 | 42 | 22 |
| 22191-06-06RW | -- | G3/8" X19 | 10 | 06 | 36.3 | 5 | 44.3 | 22 |
| 22191-06-08RW | 22192-06-08RW | G3/8" X19 | 12 | 08 | 42.5 | 5 | 50.5 | 22 |
| 22191-08-04RW | -- | G1/2" X14 | 6 | 04 | 31.5 | 6 | 38.5 | 27 |
| 22191-08-06RW | -- | G1/2" X14 | 10 | 06 | 36.3 | 6 | 43.8 | 27 |
| 22191-08-08RW | 22192-08-08RW | G1/2" X14 | 12 | 08 | 42.5 | 6 | 52.5 | 27 |
| 22191-08-10RW | 22192-08-10RW | G1/2" X14 | 16 | 10 | 57 | 6 | 57 | 27 |
| 22191-10-10RW | 22192-10-10RW | G5/8" X14 | 16 | 10 | 57 | 8 | 57.5 | 30 |
| 22191-10-12RW | 22192-10-12RW | G5/8" X14 | 20 | 12 | 63.2 | 8 | 64 | 30 |
| 22191-12-08RW | 22192-12-08RW | G3/4" X14 | 12 | 08 | 42.5 | 9.5 | 50.5 | 32 |
| 22191-12-10RW | 22192-12-10RW | G3/4" X14 | 16 | 10 | 57 | 9.5 | 55 | 32 |
| 22191-12-12RW | 22192-12-12RW | G3/4" X14 | 20 | 12 | 63.2 | 9.5 | 65 | 32 |
| 22191-16-12RW | 22192-16-12RW | G1" X11 | 20 | 12 | 63.2 | 11 | 61.5 | 41 |
| 22191-16-16RW | 22192-16-16RW | G1" X11 | 25 | 16 | 78.9 | 11 | 75 | 41 |
| 22191-20-16RW | 22192-20-16RW | G1.1/4" X11 | 25 | 16 | 78.9 | 11 | 73 | 50 |
| 22191-20-20RW | 22192-20-20RW | G1.1/4" X11 | 32 | 20 | 92.7 | 10 | 90 | 50 |
| 22191-24-24RW | 22192-24-24RW | G1.1/2" X11 | 40 | 24 | 111.4 | 11.5 | 108 | 55 |
| 22191-32-32RW | 22192-32-32RW | G2" X11 | 50 | 32 | 138.6 | 15 | 129.3 | 70 |
