碳钢整体精锻成型，表面镀锌防锈；采用**BSPP 英制平行内螺纹**，内置 60° 金属球面自定心硬密封，依靠球面与对应外锥紧密贴合锁紧，无需密封圈；有直头、45°、90° 多种弯型，搭配轻重系列套筒，适配钢丝编织、钢丝缠绕高压胶管，扣压咬合强度高，抗拔脱、耐持续压力脉冲，震动工况不易渗漏。

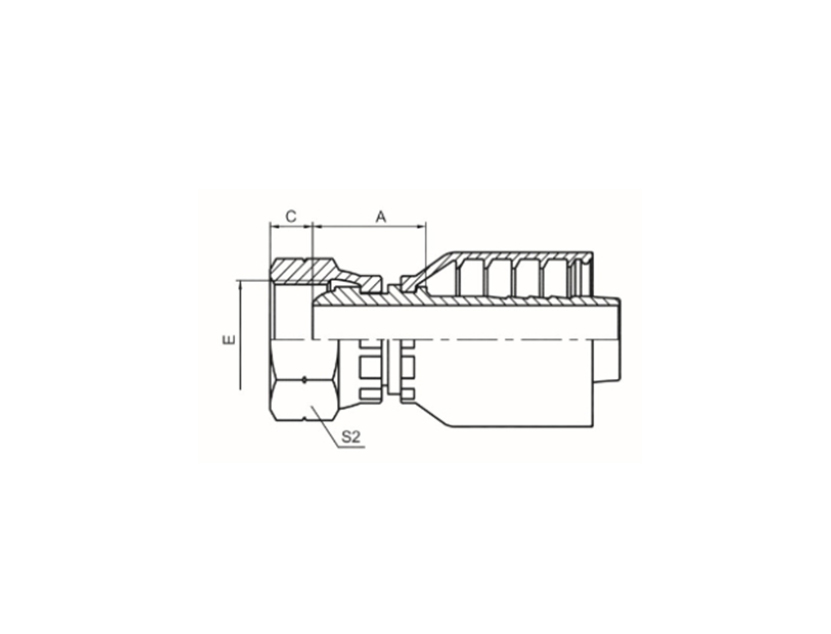

| 代 号 PART NO. | 螺纹E THREAD E | 胶 管 HOSE BORE | 尺 寸 DIMENSIONS | ||||
|---|---|---|---|---|---|---|---|
| 编织 BRAIDED | 缠绕 SPIRAL | 公称内径 DN | 标号 DASH | A | C | S2 | |
| 22111-02-04RW | -- | R1/8" X28 | 6 | 04 | 21 | 2 | 14 |
| 22111-04-04RW | -- | R1/4" X19 | 6 | 04 | 21 | 4 | 19 |
| 22111-04-05RW | -- | R1/4" X19 | 8 | 05 | 22 | 5 | 19 |
| 22111-06-06RW | -- | G3/8" X19 | 10 | 06 | 22 | 5 | 22 |
| 22111-06-08RW | 22112-06-08RW | G3/8" X19 | 12 | 08 | 23 | 5 | 22 |
| 22111-06-04TRW | -- | R1/2" X14 | 6 | 04 | 21 | 6 | 27 |
| 22111-08-06TRW | -- | R1/2" X14 | 10 | 06 | 20.5 | 6 | 27 |
| 22111-08-08RW | 22112-08-08RW | R1/2" X14 | 12 | 08 | 25 | 6 | 27 |
| 22111-08-10RW | 22112-08-10RW | R1/2" X14 | 16 | 10 | 25.5 | 6 | 27 |
| 22111-10-10RW | 22112-10-10RW | G5/8" X14 | 16 | 10 | 26 | 8 | 30 |
| 22111-10-12RW | 22112-10-12RW | G5/8" X14 | 20 | 12 | 25.5 | 8 | 30 |
| 22111-12-08TRW | 22112-12-08TRW | G3/4" X14 | 12 | 08 | 23 | 9.5 | 32 |
| 22111-12-10TRW | 22112-12-10TRW | G3/4" X14 | 16 | 10 | 23.5 | 9.5 | 32 |
| 22111-12-12RW | 22112-12-12RW | G3/4" X14 | 20 | 12 | 26.5 | 9.5 | 32 |
| 22111-16-12TRW | 22112-16-12TRW | R1" X11 | 20 | 12 | 22.5 | 11 | 41 |
| 22111-16-16RW | 22112-16-16RW | R1" X11 | 25 | 16 | 30.2 | 11 | 41 |
| 22111-20-16TRW | 22112-20-16TRW | R1.1/4" X11 | 25 | 16 | 28.7 | 11 | 50 |
| 22111-20-20RW | 22112-20-20RW | R1.1/4" X11 | 32 | 20 | 30.7 | 10 | 50 |
| 22111-24-24RW | 22112-24-24RW | R1.1/2" X11 | 40 | 24 | 39 | 11.5 | 55 |
| 22111-32-24RW | 22112-32-24RW | R2" X11 | 40 | 24 | 43.5 | 15 | 70 |
| 22111-32-32RW | 22112-32-32RW | R2" X11 | 50 | 32 | 43.5 | 15 | 70 |
