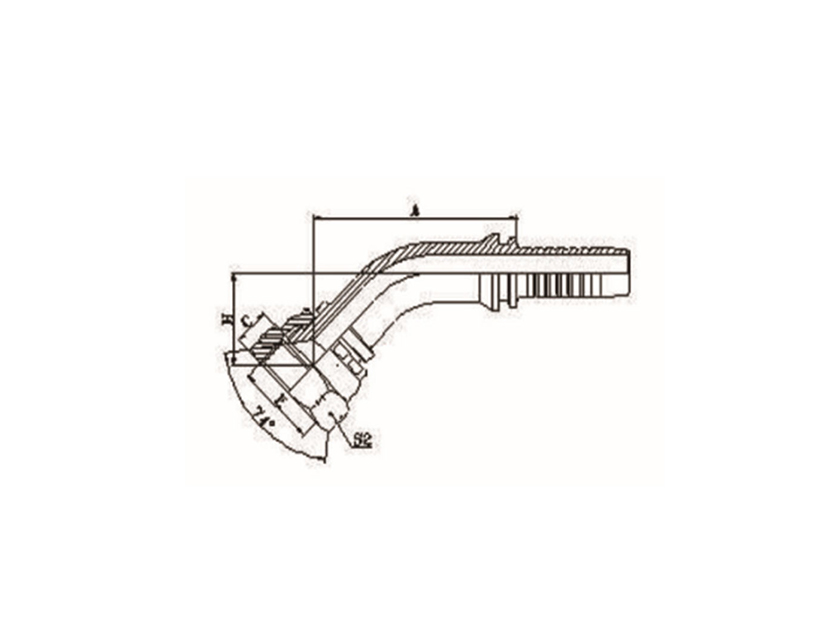

锻压碳钢一体成型，镀锌防锈；45° 斜弯结构，UNF 美制内螺纹，74° 内锥金属硬密封，依靠锥面精密贴合锁紧实现无垫密封；配套标准套筒，适配钢丝编织 / 缠绕液压胶管，扣压咬合强度高，抗拔脱、耐高频液压脉冲，震动工况不易渗漏。
| 代 号 PART NO. | 螺纹 E THREAD E | 软 管 HOSE BORE | 尺 寸 DIMENSIONS | ||||
|---|---|---|---|---|---|---|---|
| 公称内径 DN | 标 号 DASH | A | C | H | S2 | ||
| 26741-04-03 | 7/16" X20 | 5 | 03 | 37.6 | 9 | 17.2 | 15 |
| 26741-04-04 | 7/16" X20 | 6 | 04 | 37 | 9 | 18 | 15 |
| 26741-05-04 | 1/2" X20 | 6 | 04 | 40.5 | 9.5 | 18.5 | 17 |
| 26741-05-05 | 1/2" X20 | 8 | 05 | 41.5 | 9.5 | 20 | 17 |
| 26741-05-06 | 1/2" X20 | 10 | 06 | 44.6 | 9.5 | 20.3 | 17 |
| 26741-06-04 | 9/16" X18 | 6 | 04 | 40.5 | 10.5 | 18.5 | 19 |
| 26741-06-05 | 9/16" X18 | 8 | 05 | 42 | 10.5 | 20.5 | 19 |
| 26741-06-06 | 9/16" X18 | 10 | 06 | 44 | 10.5 | 20.5 | 19 |
| 26741-08-06 | 3/4" X16 | 10 | 06 | 45 | 11 | 21.5 | 24 |
| 26741-08-08 | 3/4" X16 | 12 | 08 | 56.5 | 11 | 24 | 24 |
| 26741-10-08 | 7/8" X14 | 12 | 08 | 57.5 | 13 | 24.6 | 27 |
| 26741-10-10 | 7/8" X14 | 16 | 10 | 60 | 13 | 26 | 27 |
| 26741-10-12 | 7/8" X14 | 20 | 12 | 75.7 | 13 | 28.9 | 27 |
| 26741-12-08 | 1.1/16" X12 | 12 | 08 | 58 | 15 | 25.5 | 32 |
| 26741-12-10 | 1.1/16" X12 | 16 | 10 | 60.5 | 15 | 27 | 32 |
| 26741-12-12 | 1.1/16" X12 | 20 | 12 | 73.5 | 15 | 30 | 32 |
| 26741-14-12 | 1.3/16" X12 | 20 | 12 | 77.4 | 15 | 30 | 36 |
| 26741-16-12 | 1.5/16" X12 | 20 | 12 | 77.4 | 16 | 30 | 41 |
| 26741-16-16 | 1.5/16" X12 | 25 | 16 | 84 | 16 | 32.5 | 41 |
| 26741-20-20W | 1.5/8" X12 | 32 | 20 | 95.9 | 17 | 35.2 | 50 |
| 26741-24-20W | 1.7/8" X12 | 32 | 20 | 100.9 | 20 | 40.1 | 55 |
| 26741-24-24W | 1.7/8" X12 | 40 | 24 | 114.8 | 20 | 44.1 | 55 |
| 26741-32-32T | 2.1/2" X12 | 50 | 32 | 135.9 | 23.5 | 51.6 | 75 |
